Search for Crane Part number
(click on image to open PDF document)
Figures in which the part appears:
Also known as:
51502740, 051502740, 0051502740
51502740, 051502740, 0051502740

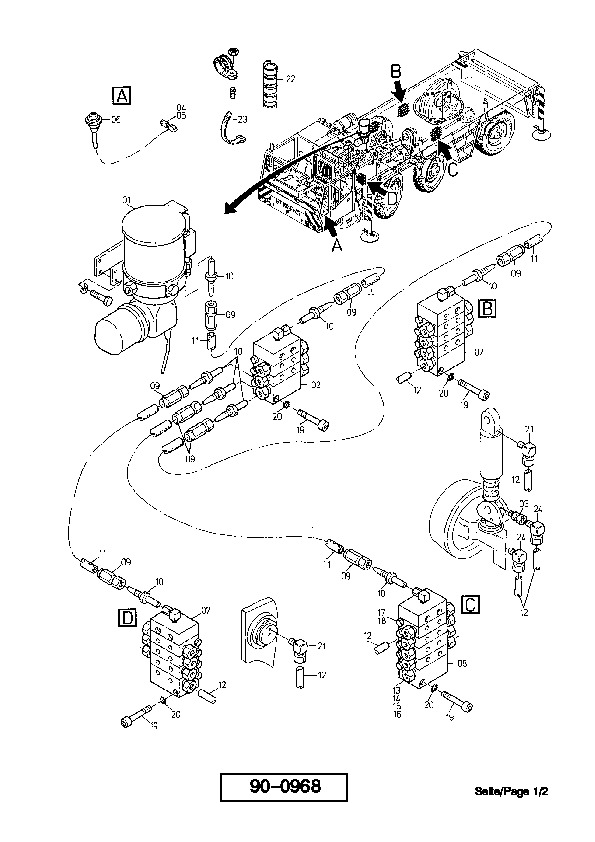

Parts for Demag AC 155, Figure 90-0968:
Part Number 51502740: SOCKET
Part Number 51502740: SOCKET
| Pos nr | Part number | Description | Weight in kg |
|---|---|---|---|
| * | 77840273 | PROTECTIVE COIL | |
| * | 57616040 | HOSE | |
| * | 77840473 | PLASTIC TUBE | 0.1 |
| 2 | 77836573 | DISTRIBUTOR | |
| 3 | 76419673 | ADAPTER | 0.01 |
| 4 | 00056051 | CABLE CONNECTOR | |
| 5 | 47319899 | INSERT | |
| 6 | 77836373 | LIMINUS TOUCH GREEN | |
| 7 | 77836673 | DISTRIBUTOR SSV 8 | |
| 8 | 32401340 | DISTRIBUTOR | |
| 9 | 51502840 | SCREWHUSES FOR HOSE SOCKETS | |
| 10 | 51502740 | SOCKET | |
| 13 | 32401840 | RING | |
| 14 | 32401740 | VALVE HOUSING | |
| 15 | 37125199 | RING | |
| 16 | 37128499 | NUT | |
| 17 | 32402040 | SEAL RING | |
| 18 | 32401940 | SCREW | |
| 19 | 30828499 | BOLT | |
| 20 | 32402240 | TOOTH LOCK WASHER | |
| 21 | 00371478 | UNION | |
| 23 | 77837873 | CABLE STRAP | |
| 24 | 76419773 | UNION |
