993-0368 (Demag AC 25 )

Also known as:
34266999, 034266999, 0034266999

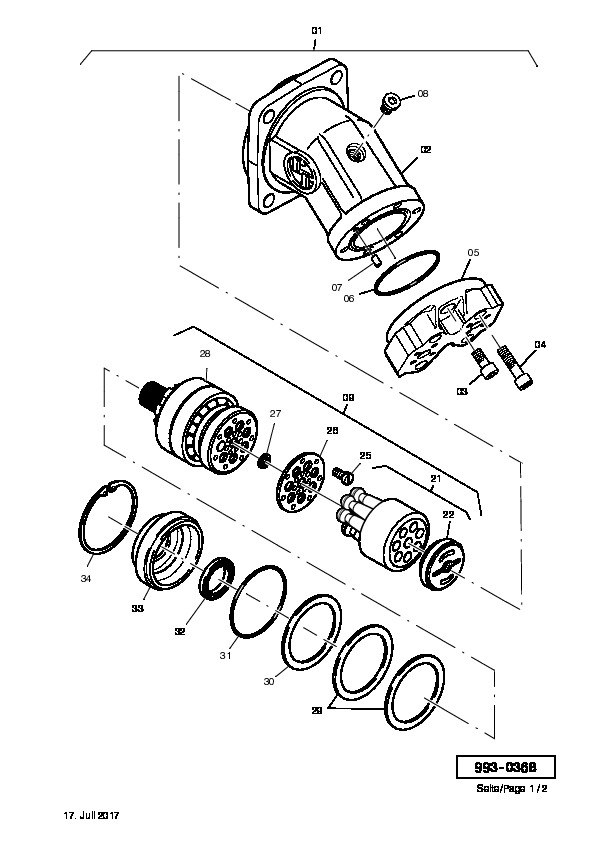

Parts for Demag AC 25, Figure 993-0368:
Part Number 34266999: RING

Pos nr	Part number	Description
	97312500	FLUID SEALING TO FIG-NO: 25
-	98994600	FLUID SEALING
1	63542140	HYDR.-MOTOR
3	51068698	CYLINDER BOLT
4	31915099	SCREW
5	41115812	CONNECTION PLATE
6	97112200	O-RING
7	34529299	PIN
8	41044712	SCREW PLUG
9	41116012	TRANSMISSION, ASSY. FIG-NOS: 21,22,25-34
21	41115912	TRANSMISSION, HYDR. PART, ASSY.
22	41116112	CONTROL PLATE
25	41116212	SCREW
26	41116312	WITHDRAWAL PLATE
27	41116412	DISK
28	41116512	DRIVE SHAFT WITH BEARING SET
29	75448600	SHIM RING
30	75469300	SHIM RING
31	51123798	O-RING
32	41116612	SHAFT SEAL
33	41116712	COVER
34	34266999	RING
