PPM A 24389-66 - PISTON

Search for Crane Part number

(click on image to open PDF document)

Figures in which the part appears:

Demag (Demag AC )

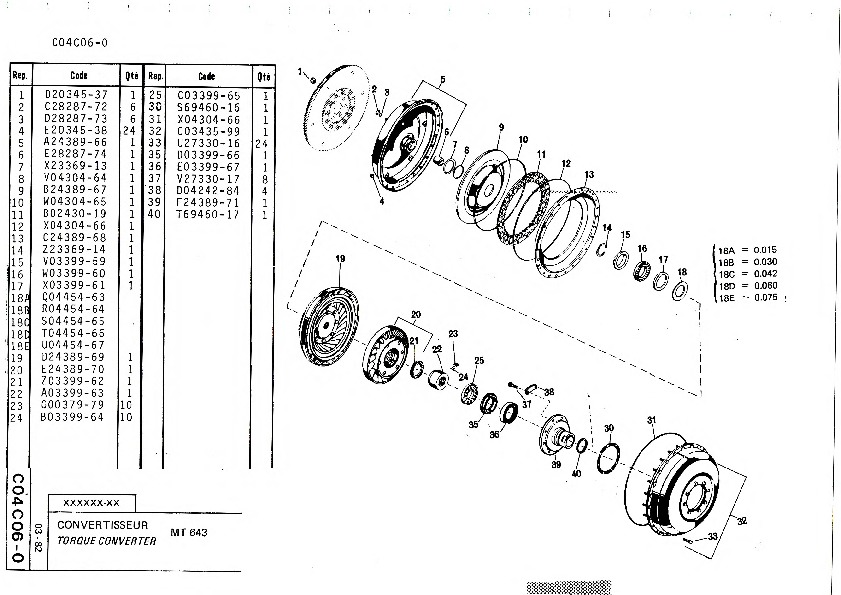

C04 C06-0 (PPM 280 ATT CONVERTER)

Also known as:
A 24389-66, A 2438966

Parts for PPM 280 ATT, Figure C04 C06-0:
Part Number A 24389-66: PISTON

Pos nr	Part number	Description
1	D 20345-37	SET
2	C 28287-72	BUSHING
3	D 28287-73	SPACER
4	E 20345-38
5	A 24389-66	PISTON
6	E 28287-74
7	X 23369-13
8	V 04304-64
9	B 24389-67
10	W 04304-65	O-RING-SEAL
11	B 02430-19	DISC
12	X 04304-66	O-RING-SEAL
13	C 24389-68	HOUSING
14	Z 23369-14
15	V 03399-59	BEARING
16	W 03399-60	BULB
17	X 03399-61	BEARING
18A	Q 04454-63
18B	R 04454-64
18C	S 04454-65
18D	T 04454-66
18E	U 04454-67
19	D 24389-69
20	E 24389-70
21	Z 03399-62
22	A 03399-63
23	G 00379-79
24	B 03399-64
25	C 03399-65	BEARING
30	S 69460-16	BEARING
32	C 03435-99
33	U 27330-16
35	D 03399-66	BEARING
36	E 03399-67	BEARING
37	V 27330-17	SCREW
38	D 04242-84	BRAKE
39	F 24389-71
40	T 69460-17
