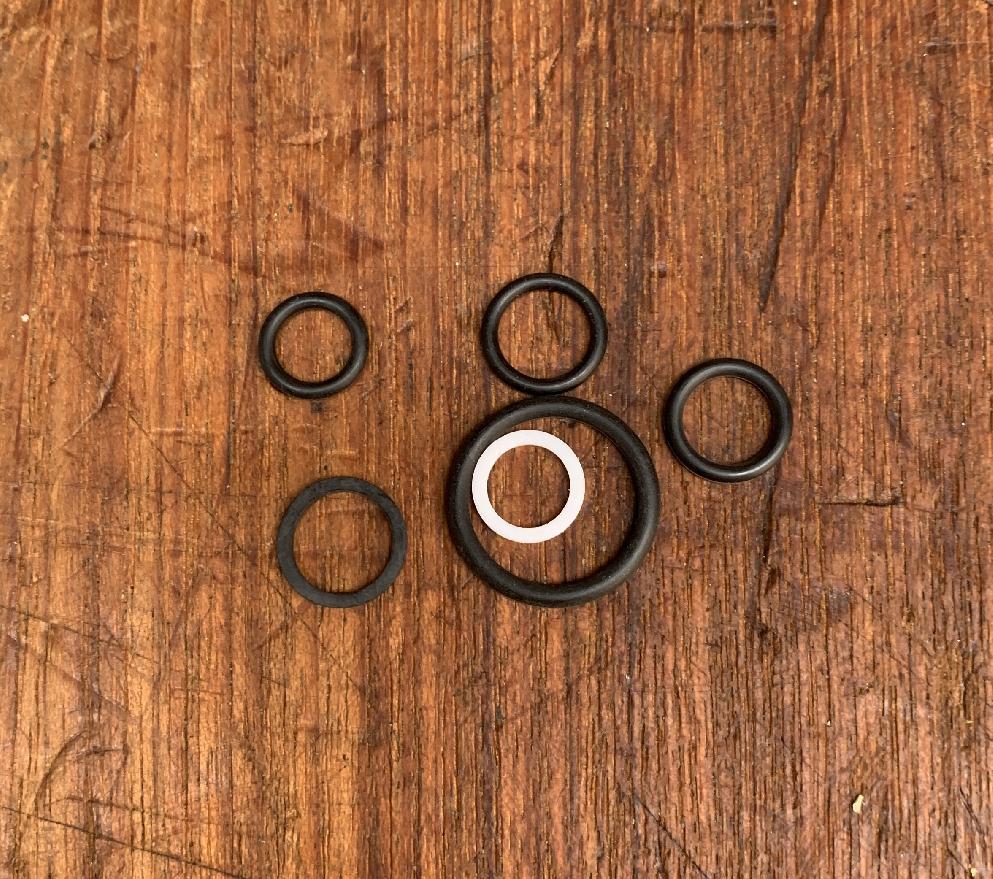

Grove 9752100665 - REPAIR KIT

Search for Crane Part number

(click on image to open PDF document)

Figures in which the part appears:

Also known as:
9752100665, 09752100665, 009752100665

Parts for Grove AT 422, Figure 7926001849:
Part Number 9752100665: REPAIR KIT

Pos nr	Part number	Description	Weight in kg
1	9926104780	SECTION, INLET -
1	7926001849	COMPLETE ASSY
2	9926105651	WORKING SECTION
3	9926105634	VALVE (12 VDC)
4	9926104775	VALVE, OUTLET SECTION
5	9926104777	SLEEVE ASSEMBLY
6	9926105656	BOLT STACKING KIT
8	9926105547	VALVE RELIEF
9	9926104776	PLUG&ORING
10	9926104783	O-RING
11	9926104784	O-RING
12	7755023000	ORING
12	9752100665	REPAIR KIT	0.004
13	9926104794	COIL	0.181
14	9926103418	O-RING
15	9926104793	VALVE ASSY - CARTRIDGE	0.440
16	7755908000	O-RING	0.004
17	7755012000	O-RING	0.001
18	7755012609	BACK-UP RING	0.001
19	9926104801	B/U RING	0.001
20	7755011000	O-RING	0.002
21	9926104788	HEAD, PILOT	0.820
22	9926105652	CARTRIDGE
24	9926105632	O-RING
25	9926105633	O-RING
26	9926105631	O-RING
27	9926104797	PISTON
28	9926104798	SPRING
29	7755912000	O-RING	0.010
30	9926104796	PLUG
33	9926104791	WASHER,
34	9926104790	SPRING
35	7755010000	O-RING	0.050
37	9926104792	CAP SCREW,
37	9752100664	KIT, REPAIR
47	9926104800	VALVE CARTRIDGE
52	9926105655	O-RING
53	9926105654	O-RING
54	9926105653	RING, BACK-UP
56	9926105635	RELIEF VALVE
66	9926104789	CAP SCREW,
71	9926104778	ORING
72	9926104779	B/U RING
73	7755916000	O-RING	0.001
