Search for Crane Part number

(click on image to open PDF document)

Figures in which the part appears:
993-0862 (Demag AC 100 )
993-0515 (Demag CC 2800 )
Also known as:
31927699, 031927699, 0031927699
Parts for Demag AC 100, Figure 993-0862:
Part Number 31927699: BOLT
Pos nr Part number Description Weight in kg
1 00119812 GEAR BOX AT49975912
2 41104512 DRIVE FLANGE
3 41104612 ADJUSTING NUT
4 30885999 SCREW
5 40076612 HOUSING
6 40076712 HOUSING
7 34565299 STIFT
8 31927699 BOLT 0.065
9 31338699 SCREW PLUG
10 34010399 SEAL
11 31339699 SCREW
12 33988899 SEAL
13 41104712 BREATHER
14 41104812 OIL SPRINGER
15 51418098 BOLT
16 41104912 PIPE
17 31922899 HEXSOCK SCREW M 6
18 34915499 CLAMP
19 51152498 SCREW
20 41105012 SHAFT
21 41105112 GEAR WHEEL
22 31933999 SCREW
23 41105212 RING
24 36302299 BEARING
25 50622398 DISC
26 41105312 COVER
27 51304798 SCREW
28 00153412 SHAFT SEAL RING
29 41105412 GEAR WHEEL
30 63582140 ROLLER BEARING
31 78076673 COVER
32 51407498 HEXAGON SCREW
33 31345999 SCREW PLUG
34 33990799 SEAL
35 78057973 PUMP EF40072212
36 41105512 HOUSING
37 15150299 BALL
38 41105612 COVER
39 31925599 HEXSOCK SCREW M10
40 41105712 RING GEAR CARRIER
41 78077573 RING GEAR
42 00153512 SPRENG RING
43 41105812 COVER
44 32150399 HEXAGON SOCKET SCREW
45 36157699 BEARING
46 51269098 THRUST WASHER
47 41105912 DRIVE FLANGEIV
48 78077373 SUN GEAR
49 34255799 CIRCLIP
50 40033912 WEAR RING
51 78077273 PLANETARY
52 78080173 ROLL BODY KIT
53 77738873 DISC
54 78077473 PLANETARY PIN
55 78076473 FLANGE
56 51148098 NEEDLE BEARING
57 41106012 CIRCLIP
58 41106112 CIRCILP
59 50162398 ROLLER BEARING
60 41106212 ZAHNRAD MIT FLANSCH 78076473
61 51283098 SCREW
62 40034412 DRIVESHAFT
63 40034512 RING
64 34268099 CIRCLIP 150X
65 36061499 BEARING
66 41106412 COVER
67 51281598 SCREW
68 51141498 SHAFT SEAL RING
69 78075073 SLEEVE
70 41106512 SHIFT FORK
71 77108200 PISTON
72 51147798 O-RING
73 62170840 RING
74 77108300 SPRING
75 77250773 CYLINDER
76 31931899 SCREW
77 40021712 SWITCH
78 41113412 SCREW PLUG
* Selected parts are automatically added to your RFQ list *

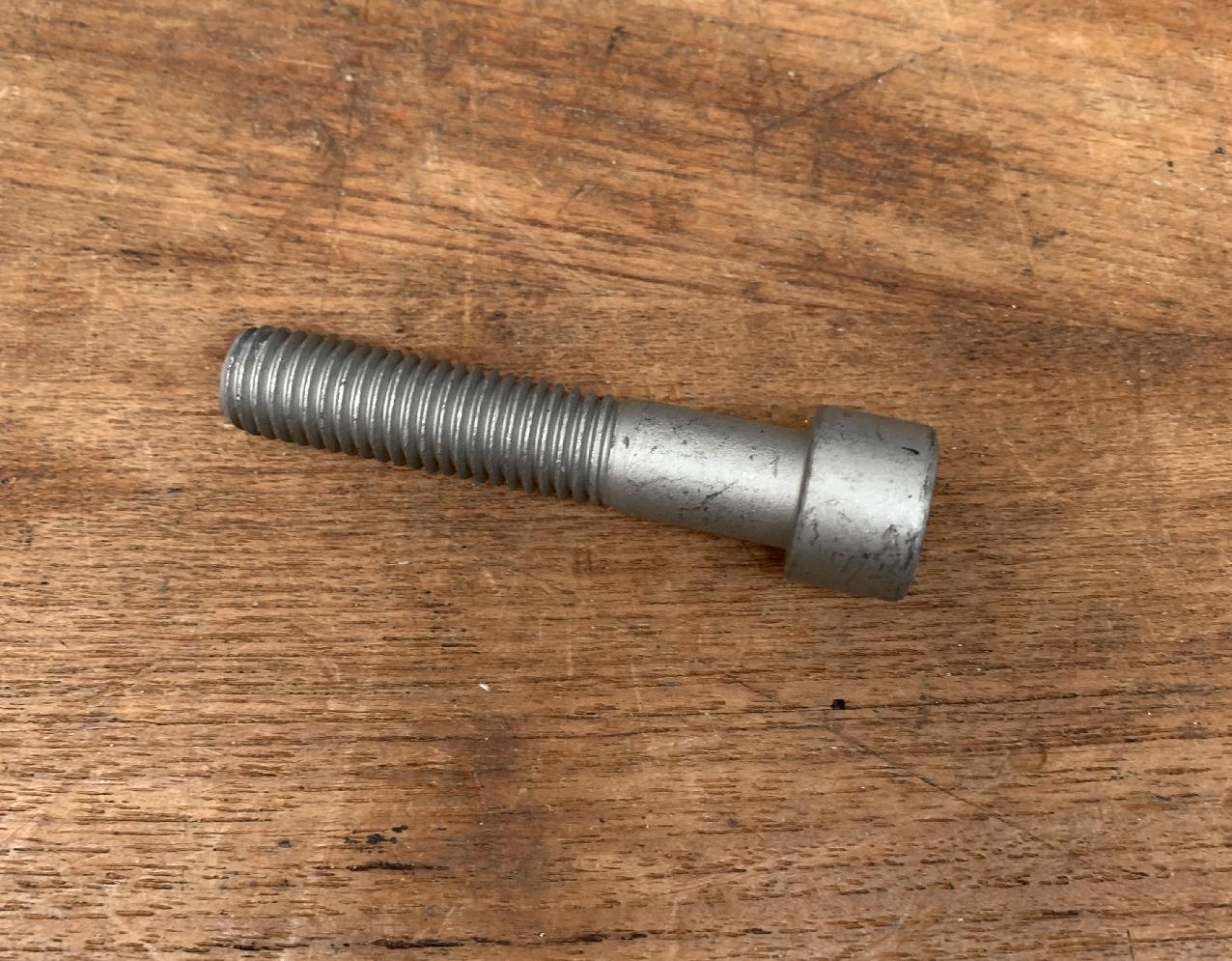

31927699 Demag AC BOLT
