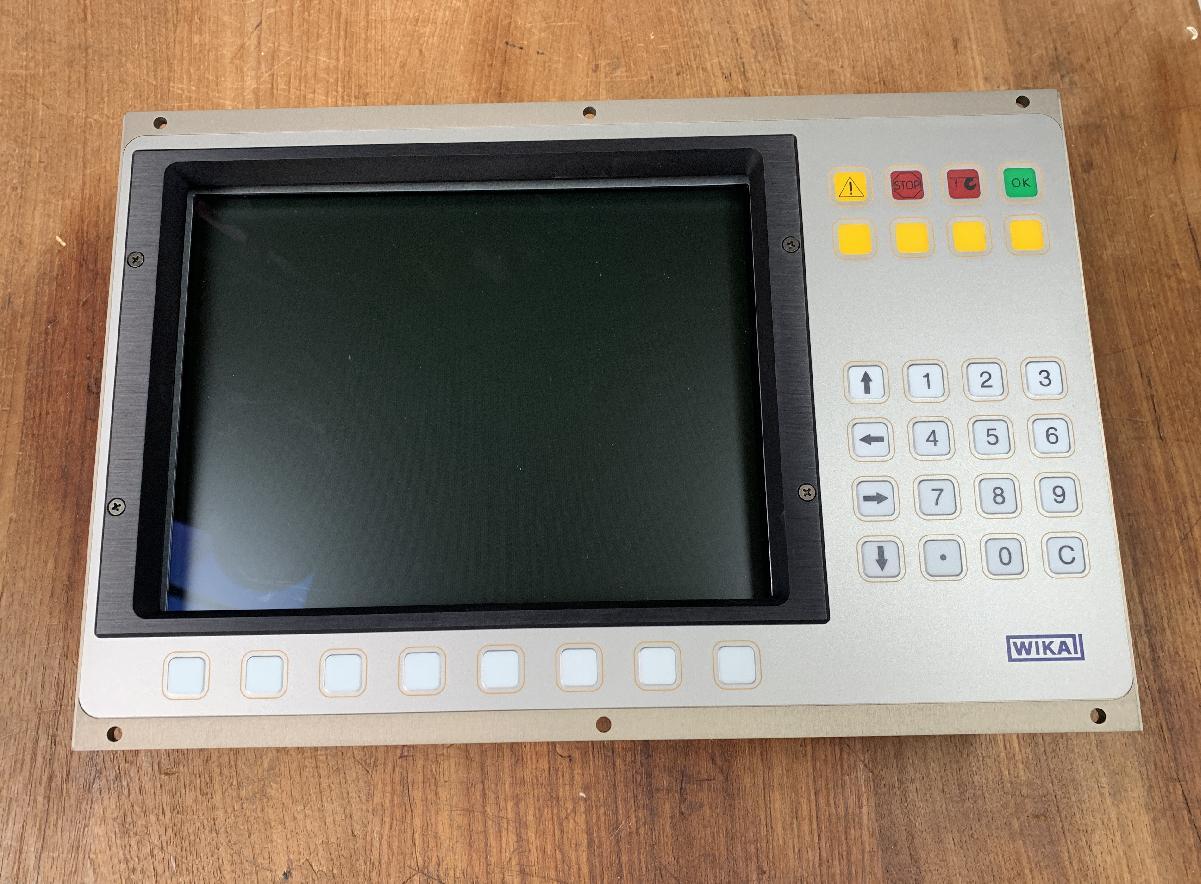

Demag 13158012 - LMB CONSOLE

Search for Crane Part number

(click on image to open PDF document)

Figures in which the part appears:

177-2110 (Demag AC 100 )
Demag (Demag AC )

Also known as:
13158012, 013158012, 0013158012

Parts for Demag AC 100, Figure 177-2110:
Part Number 13158012: LMB CONSOLE

Pos nr	Part number	Description	Weight in kg
1	67137340	INSTRUMENT BOARD PANEL
2	00009512	INDICATOR LIGHT MODUL
3	00009612	INDICATOR
4	65511440	IGNITION SWITCH
5	67155540	INDICATOR LIGHT
6	67089540	SYMBOL
7	63584240	EMERGENCY SWITCH
8	65419140	EMERGENCY STOP PLATE
9	67090740	FOIL
11	57613040	TIMER CLOCK ED EST
13	63409640	SWITCH
14	63409740	SYMBOL"BLOWER"
15	36341040	FRAME
16	55103640	SWITCH
17	55104040	SWITCH
18	55103840	SWITCH
19	52499140	SWITCH
20	55108140	SYMBOL
21	41450940	SYMBOL
22	41451040	SYMBOL
23	52494840	SYMBOL
24	50704998	COUNTERSUNK SCREW
25	49094340	FITTING
26	49058240	BUILT-IN SOCKET
27	65418840	BLANKPLATE
29	13158012	LMB CONSOLE
30	67090940	LIGHT WAVE LINE
31	35625640	CAP	0.030
32	35625440	CONTROL LIGHT
33	35615640	LIGHT BULB	0.050
34	55108040	SWITCH
40	97393473	KEY
41	62141540	BULB ED13197712 EF00160212
42	42006412	BUIBTOFIG-NO.: 02+05
51	65418740	SWITCH
52	65418940	SYMBOL "AIR CONDITION"
62	54522840	SET OF FOILS, SUPERSTRUCTURE
64	46178740	SYMBOL
