Demag 30780499

Search for Crane Part number

(click on image to open PDF document)

Figures in which the part appears:

Also known as:
30780499, 030780499, 0030780499

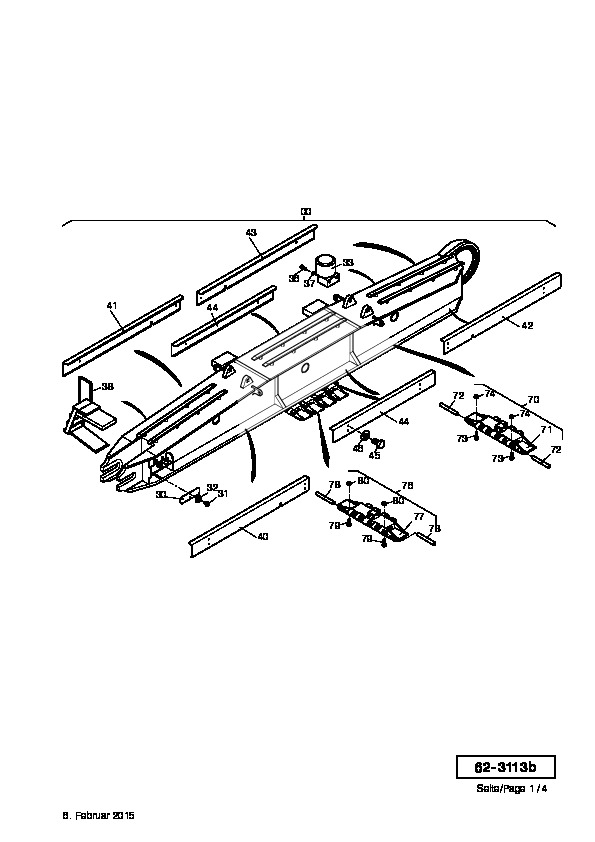

Parts for Demag CC 2800, Figure 62-3113B:
Part Number 30780499: SCREW

Pos nr	Part number	Description
-	60944040	GREASE 5KG
--	10197712	TRACK FRAME LH. ASSY.WITH TRACK SHOES 2000 MM
0	10197512	TRACK FRAME L.H
1	10550112	TRACK FRAME L.H. WEIDMENT
2	10196012	TRACK ROLLER ASSY.
3	10196412	TRACK ROLLER AXLE
4	10196212	DISC
5	10198212	DISC
6	10197612	ANGLE
7	10138912	SCRAPER
8	10139012	THREAD PIN
9	10196312	AXLE STIRRUP
10	10138812	IDLER AXLE
11	62630640	IDLER ASSY.
12	62631640	DISC
13	62631340	DISC
14	62631140	AXLE
15	35596299	AXLE STIRRUP
16	30780499	SCREW
17	32044399	SCREW
18	18848640	PLATE
19	10597012	PLATE
20	18848540	PLATE
21	50129398	ECROU
24	10111212	RING
25	00486098	GREASE NIPPLE
26	37083399	END PLUG
27	15113699	BOLT
28	15112799	BOLT
29	30795299	SCREW
30	10142412	PLATE
31	30794999	VIS
32	34050999	DISC NEW12640999
35	10111312	IDLER ASSY.
36	30759340	BOLT
37	50437298	WASHER
38	10590112	LADDER ASSY.
40	10564312	PROTECTION
41	10564412	PROTECTION
42	10564512	PROTECTION
43	10564612	PROTECTION
44	10564712	PLATE
45	50050698	SCREW
46	34068899	DISC
61	10196112	TRACK ROLLER
62	10198112	BUSH
64	62630740	IDLER
65	62630840	BUSH
66	10112312	IDLER
67	10112412	BUSHING
70	10197312	TRACK GROUP ASSY.
71	10111012	TRACK SHOE 1500 MM
72	33537840	BOLT
73	30784399	SCREW
74	12502799	NUT
76	10197412	TRACK GROUP ASSY.
77	10156212	CRAWLER PAD
