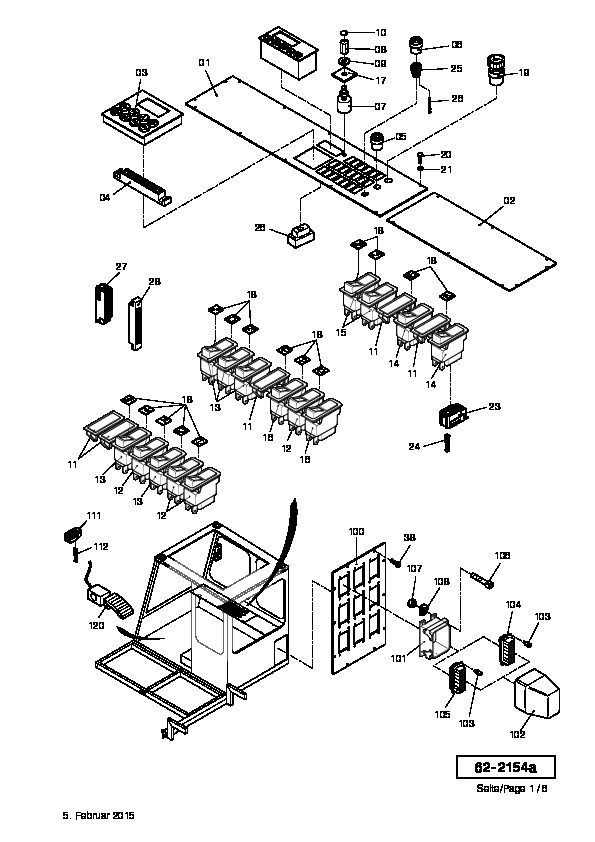

Parts for Demag CC 2800, Figure 62-2154A:
Part Number 50986198: NUT
Pos nr Part number Description Weight in kg
- 50941798 FUSE
1 13007912 FRONT PANEL OF LETERAL CONSOLE
2 88937740 FRONT PANEL
3 13026712 DISPLAY
3 00061012 FEMALE HOUSING, 18-POT.
4 00075612 SOCKET RAIL
5 63584740 KEY SWITCH
6 63409440 IGNITION SWITCH
7 63495540 POTENTIOMETER EF00008412
8 127812 ADJUSTING KNOB
9 00127912 COVER, NUT
10 128012 COVER
11 36341040 FRAME
12 55103640 SWITCH
13 52499140 SWITCH
14 55103840 SWITCH
15 55103940 SWITCH
16 55104040 SWITCH
17 00150512 POTENTIOMETER, RETAINER
18 13008412 SYMBOLS
19 41738640 LIGHTER EF76224873 EF38521340
20 49094340 FITTING
21 50704998 COUNTERSUNK SCREW
22 50986198 NUT
23 60446040 SLEEVE
24 60445940 SPRING CONTACT
25 63409540 CENTRAL PLUG
26 05725140 PLUG-IN SLEEVE
27 13009112 PLUG HOUSING
28 13009212 FLAT BLADE HOUSING
30 13008012 MOUNTING PLATE OF LATERING CONSOLE
31 13008112 COVER PLATE
33 00093512 IMPULS COUNTER 0.300
34 13008212 RETAINER
35 30763999 SCREW
36 50986299 NUT
37 32081999 SCREW
38 30740699 BOLT
39 13008512 CIRCUIT PLATE
40 13008612 CIRCUIT PLATE 0.45
41 13008712 CIRCUIT PLATE
44 13009012 CIRCUIT PLATE 0.2
45 00039212 DISTANCE PIN
46 63464640 PIN
47 31956499 CYLINDER HEAD BOLT
50 35829340 RELAY EF47045812
53 55133440 VOLTAGE CONVERTER
54 46125140 SENDER
55 32081699 SCREW
57 65478040 PIN
58 51562640 DISTANCE PIN
60 42104212 CONTROL UNIT - MUST BE PROGRAMMED
61 42103012 CONTROL DEVICE
62 13026212 MOUNTING PLATE
63 32100999 SCREW
64 33210199 NUT
65 13233612 MICROCONTROLLER (R/B 22518912)
67 30750999 SCREW
70 44074640 MOUNTING PLATE
71 00069212 RESISTER
72 65459140 RESISTOR 750 OHM 1% 0,25W
73 00093112 RESISTER
74 32910299 SCREW
75 50985898 NUT
77 00068112 STAR POINT
78 65504440 CAN CABLE, 13M
79 00087312 SOCKET
80 00060812 FEMALE HOUSING, 9-POL.
81 65484940 FEMALE HOUSING
82 00060912 FEMALE HOUSING, 15-POT.
85 00061112 CONTACT
91 13007312 ASSEMBLY RAIL
93 00031912 TIME LAG RELAY
94 55169540 CLAMP
95 55169840 MARKER
96 35627740 CLAMP
97 55197940 CROSS CONNECTION
100 13009312 FACE
101 60446140 MOUNTING BOX
102 35826340 COVER
103 32195140 ENCODER
104 38522740 PLUG INSERT
105 38522840 PLUG INSERT
106 32097599 SCREW
107 50985999 NUT
108 34650899 RING
109 63504140 PLUG HOUSING
110 62151340 MALE CONTACT
111 00011712 SOCKET
112 00011812 TAB
113 60446940 ADAPTER CASE
114 49073340 ADAPTER CASE
115 44079940 PINS
120 27058940 SWITCH
130 50941898 FUSE EF46076412
132 50941998 FUSE EF46076612
133 50942098 FUSE
135 51574340 RELAY 1.16
136 43050212 PLUG
