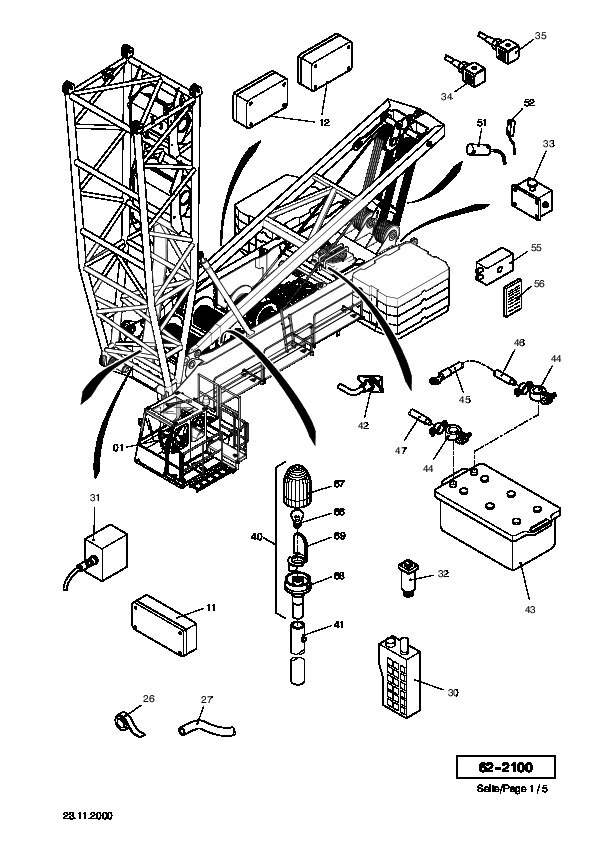

Parts for Demag CC 2800, Figure 62-2100:
Part Number 51087598: NUT
Pos nr Part number Description Weight in kg
97952373 KEY
11 13002612 DISTRIBUTOR BOX
12 13002712 DISTRIBUTOR BOX, ASSY.
14 13003212 CABLE
15 13003312 CABEL 16 POL.
16 13004112 CABLE
17 13003412 CABLE ASSY.
18 13003512 CABLE PLUG 6-POL, ASSY.
19 13003612 CABLE SOCKET 6-POL ASSY.
20 13003712 PDC-CABLE ASSY.
21 13004012 CABLE ASSY.
22 13026912 CABEL CONNECTOR 6-POL KPL
23 13027012 BLIND SOCKET
24 13027112 BLIND PLUG
26 63445440 INSCRIPTION TAPE ROLL
27 62177540 SHRINKDOWN TUBING 5M-ROLL
30 13002512 REMOTE CONTROL
31 59232340 SLOPE TRANSMITTER AT49944412
32 63518840 PRESSURE TRANSDUCER EF63513540 0.4
33 05710940 SWITCH
34 65492540 CABLE
35 65492440 CABLE
40 57620840 ROTAFLARE LIGHT EF46126540 EF978
41 00048012 CONECTOR
42 62102240 SWITCH
43 65493940 BATTERY
44 05917540 PRESSURE RELIEF VALVE
45 60022709 CABLE LUG
46 50588898 CABLE
47 47166799 CABLE
48 63587840 CABLE 4 POL
51 10200712 LOAD SENSOR 60 TON IN REQUEST
52 49026440 SWITCH
55 16099940 FUSE BOX
56 05807740 FUSE 50 A
66 50738399 BULB 24/70W
67 97806273 PUSH HOOD, YELLOW
68 97806373 HOUSING BASE
69 97806473 MOTOR WITH REFLECTOR
81 00063312 SOCKET
82 00063412 PLUG INSERT 6-POT.
83 16844640 PLUG
84 32495440 ENCODER
91 38522440 HOUSING
92 35826440 COVER
93 438898 BOLT
95 38522640 SOCKET
96 38522540 INSERT
97 32081999 SCREW
98 49079240 CHAIN
111 10503712 LIMIT SWITCH
112 10503812 WIRE HARNESS
113 10503912 SHEET METAL
117 33462699 NUT
118 51087598 NUT
119 34050799 WASHER
120 34050899 WASHER
121 34050099 DISC
122 30761799 BOLT
123 32101099 SCREW
124 30742599 SCREW 0.05
133 10109812 RETAINER
134 12519799 SCREW
135 32081799 CYLINDER HEAD BOLT
