993-0579 (Demag AC 100 )
993-1338 (Demag AC 25 )

Also known as:
77827673, 077827673, 0077827673

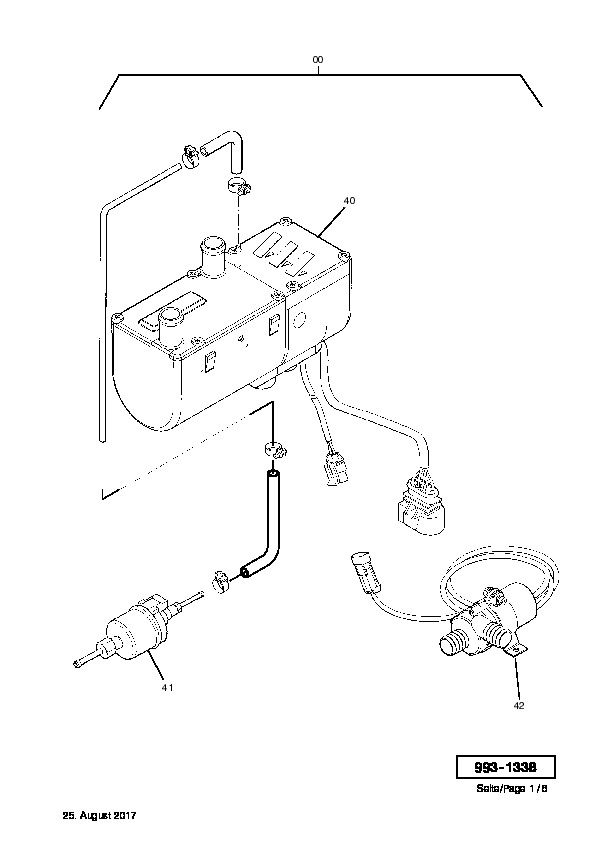

Parts for Demag AC 25, Figure 993-1338:
Part Number 77827673: SLEEVE

Pos nr	Part number	Description	Weight in kg
0	30473412	HEATHER ASSEMBLY
1	42195712	CASING
2	46019612	BLOWER EF41596612
3	46019712	COVER
4	46019812	COMBUSTION CHAMBER
5	42196112	HEAT EXCHANGER
6	46019912	CONTROL UNIT
7	42196212	COVER
8	42196312	COVER
9	46020012	SEAL
10	42196512	O-RING
11	46020112	GLOW PLUG
13	45007612	SENSOR FLAME MONITORING
14	46020312	RETAINER
17	46020212	CABLE HARNESS
18	42196812	LEITUNGSSTRANG
19	42196912	SPRING
20	46020412	O-RING
23	50029698	SCREW	0.10
26	31856599	BOLT
27	31922399	SCREW
28	31945099	SCREW
29	31857399	SCREW
30	31861699	BOLT
31	42126412	THERMOSENSOR
40	46020512	HEATER
41	42047512	FUET METERING PUMP
42	42047412	WATER PUMP
43	42195512	BRACKET
44	42047712	DISC
45	77826973	METAL RUBBER BUFFER
46	80701773	FEXIBLE TUBING DN20
47	80701873	END SLEEVE
48	49028440	CLAMP
49	76533173	EXHAUST HOSE
50	97536600	FLEXIBLE SPIRAL TUBING ED11908112
51	80702073	END SLEEVE
51	97540273	CLAMP
52	42047812	MUFFLER
53	97535300	CLAMP
54	77827173	RETAINER
55	97535500	CLAMP
60	42195612	HOKIER/BRACKET WITH HOLES
70	77882273	FUEL HOSE
71	42195412	HOSE ø5X3MM
72	44092912	PIPE O4X1 ,25MRN
73	77881173	HOSE CLIP
74	77881073	HOSE CLIP
75	41558540	FUEL FILTER EF42307712
76	66929140	HARNESS	0.500
77	97534000	RELAY
78	43881373	PLUG
79	45007712	HEATER TIMER
80	42121412	SOCKET HOUSING
81	77827673	SLEEVE
82	39477440	MOUNTING FRAME
