993-0968 (Demag AC 100 )
993-0971 (Demag AC 100 )
993-0973 (Demag AC 100 )
993-0361 (Demag AC 150 )
993-0393 (Demag AC 25 )
Demag (Demag AC )

Also known as:
31915199, 031915199, 0031915199

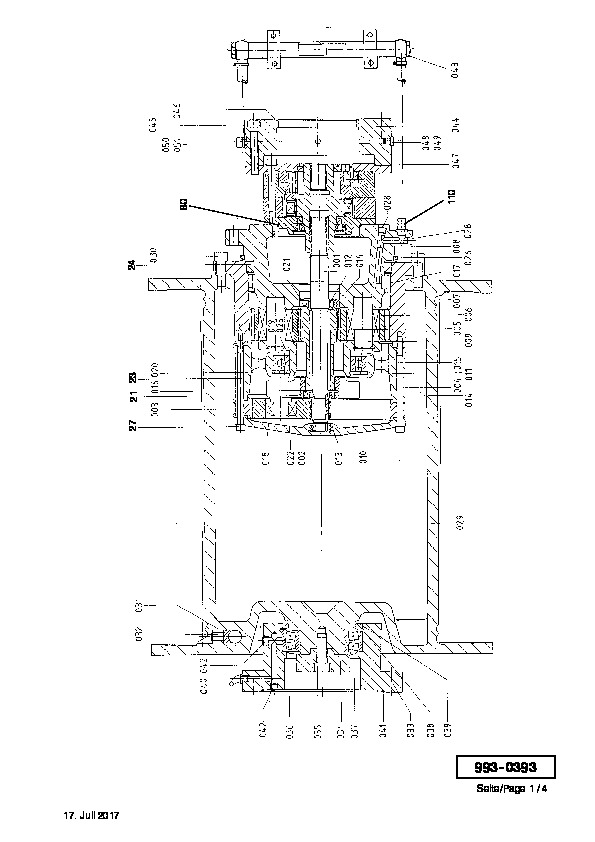

Parts for Demag AC 25, Figure 993-0393:
Part Number 31915199: BOLT

Pos nr	Part number	Description	Weight in kg
-	63527640	HOIST GEAR BOX
13	94013000	BALL BEARING
14	36044599	BEARING
16	42010212	SHIM
17	42010312	ROTTER
18	42010412	BEARING
19	42010512	BEARING
20	34267099	CIRCLIP 100X
21	34264799	CIRCLIP
22	51038298	CIRCLIP
23	34255799	CIRCLIP
24	43071212	SHAFT SEAL
25	34262099	RING
26	43052012	V-SEAL
27	32158599	SCREW
28	31340599	SCREW
29	42066912	ROPE DRUM
30	51071498	ZYLSHR M 10X 30 10.9-A3C DIN 912
31	44018212	CLAMPING RAIL
32	32517699	PIN
35	32158199	SCREW EF 50459998	0.02
36	43071312	ROLLER BEARING
37	43071412	NILOSRING
38	34266199	CIRCLIP 72X
39	43071512	SEAL
41	15162299	O-RING
43	78062973	OIL LEVEL GAUGE
45	31915199	BOLT
46	15162199	O-RING
47	36719198	O-RING
48	31339599	PIPE PLUG
49	33971199	SEAL RING
50	78042073	BLEEDER VALVE
51	50749798	SEAL RING
70	42010612	BRAKE
71	42010812	CONTROL LINKAGE ASSY.
72	42010912	SPRING
73	42011012	OUTER DISC
74	42011112	INNER DISC
78	31938899	CYLINDER SCREW
80	99766600	O-RING
82	31938999	SCREW
83	36045099	BEARING EF40505112 EF40505512
84	34255099	CIRCLIP
85	34166599	CIRCLIP
86	31339499	SCREW PLUG
87	33987299	SEAL
88	42011312	U-SEAL
89	50114398	SHAFT SEAL
90	41140112	JOINT SHAFT SEAL
91	42011412	COMPRESSION SPRING
92	42011512	SEAL KIT
94	17126040	PLUG
100	42078112	HOSE SOCKET

* Selected parts are automatically added to your RFQ list *

Pieces	Part nr.	Description	Brand
- 1 +	77104700	COVER	Demag
- 1 +	41092912	OUTER SPRING	Demag
- 1 +	41140612	ORIFICE	Demag
- 1 +	76320273	CROSSTIE EF77104900	Demag
- 1 +	77250173	BUSHING	Demag
- 1 +	40035312	SCREW	Demag
- 1 +	76067300	RING	Demag
- 1 +	99710300	DISC	Demag
- 1 +	40069312	AXIE HOUSING	Demag
- 1 +	41160812	SOLENOID	Demag
- 1 +	41092312	MOTOR FLANGE	Demag
- 1 +	50267098	O-RING	Demag
- 1 +	51141698	O-RING	Demag
- 1 +	41113812	GASKET	Demag
- 1 +	50021398	SNAP RING	Demag
- 1 +	77733173	SCREW	Demag
- 1 +	40047612	RADIAL SEAL RING NBR	Demag
- 1 +	96579500	COUNTERSHAFT HOUSING	Demag
- 1 +	36316799	BEARING	Demag
- 1 +	40069812	AXIE HOUSING	Demag
- 1 +	77250073	BEVEL GEAR SET	Demag
- 1 +	31915199	BOLT	Demag
