993-0971 (Demag AC 100 )
993-0973 (Demag AC 100 )
993-0109 (Demag AC 25 )
Demag (Demag AC )

Also known as:
36301599, 036301599, 0036301599

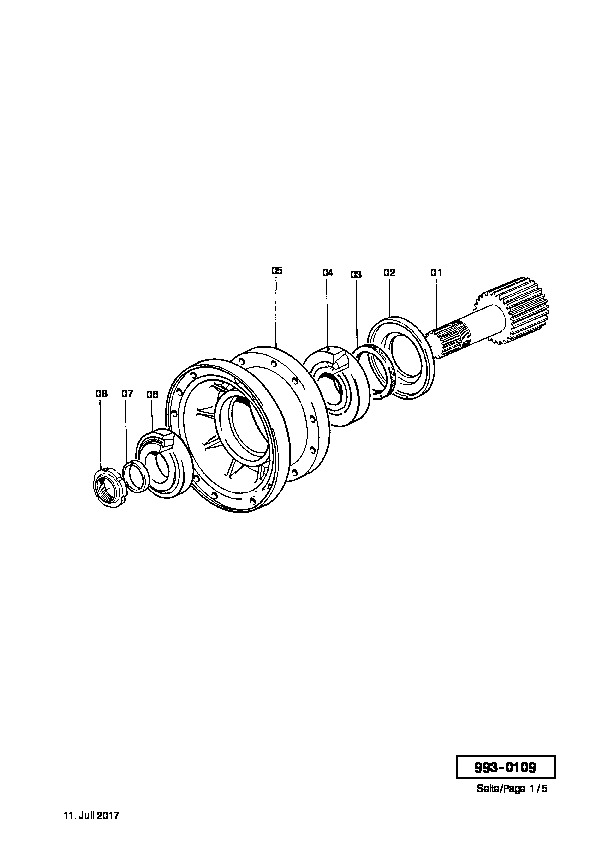

Parts for Demag AC 25, Figure 993-0109:
Part Number 36301599: BEARING

Pos nr	Part number	Description
0	63527440	SLEW GEAR
1	97803973	PINON SHAFT
2	51113198	SEAL
3	50604098	RING
4	36301599	BEARING
6	36301499	BEARING
7	97804073	DISTANCE PLATE
8	97804173	GROOVE NUT
9	51113098	O-RING
10	97823773	SPROCKET
11	97823873	PLANETARY CARRIER ASSY.
12	97804473	SUNGEAR
13	97823973	COVER
14	97804573	PLANETARY CARRIER ASSY.
15	97804673	SUNGEAR
20	42093912	BRAKE
21	34267999	CIRCLIP
22	97804773	DISC PUSHING
23	97805673	SPRING
24	97804873	SHAFT BRAKE
25	97804973	INTERNAL DISC
26	97805073	OUTER DISC
28	97821973	VENT SCREW
29	97822073	BREATHER PLUG
31	75797173	PLUG
32	43128073	O-RING
33	97805273	OIL LEVEL PLUG
34	51143098	O-RING
35	50160998	O-RING
36	75796973	DISC
37	97100200	O-RING
38	97105800	O-RING
39	97805473	PISTON
40	97107300	O-RING
41	97805573	FLANGE
