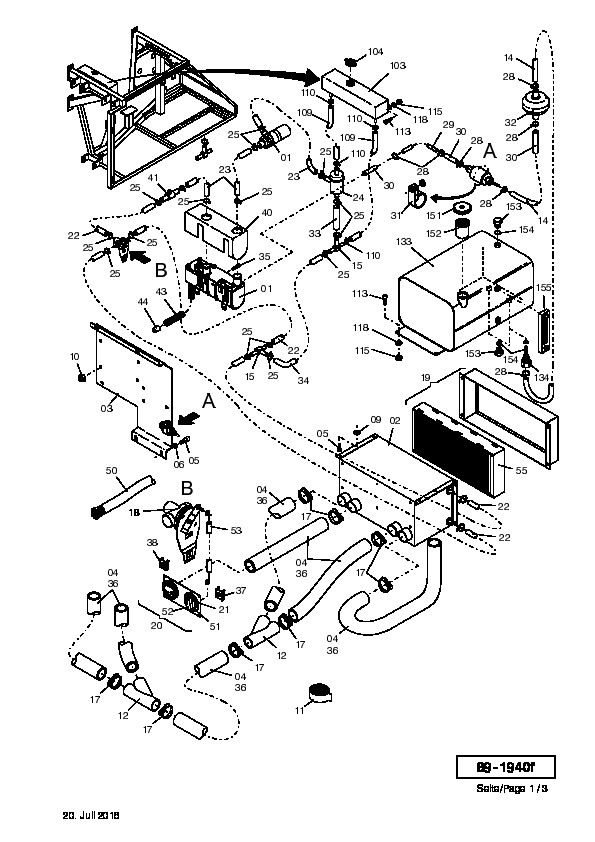

Parts for Demag AC 25, Figure 89-1940F:
Part Number 51052398: SCREW
Pos nr Part number Description Weight in kg
1 30473412 HEATHER ASSEMBLY
2 00069512 HEATER ASSY.SEE PAGE 993-0580
3 30036612 SHEET
4 25647340 FLEX. PIPE, O 75MM - STATE LENGTH REQUIRED
5 51052398 SCREW
6 50976898 LOCK WASHER
7 61212940 PIPE, øL0RRIM
9 34050699 DISC
10 50986998 NUT
11 65406040 LINING STRAP
12 65422440 PIPE
14 51352598 FUEL HOSE, 05MM-STATE LENGTH REQUIRED
15 65468240 T-UNION
17 28761040 CLAMP
18 65468340 WATER VALVE
19 00192712 ELEMENT
20 66873940 CONTROL ELEMENT
21 61581140 PLATE
22 49027740 HOSE
23 49028140 ELBOW
24 00176712 THERMOSTAT
25 28760840 HOSE CLIP, E16-25MM 0.02
28 50205198 CLAMP
29 50150298 TUBE
30 50638398 HOSE NEW#56986812
31 51361598 CLAMP
32 41558540 FUEL FILTER EF42307712
33 60459840 CONNECTION PIPE
34 00043812 HOSE
35 50977698 CYLINDER BOLT EF31912999
36 05841440 FLEX, PIPE E 80MM
37 00079012 SPRING NUT ø 4,5MM
38 00079112 SPRING NUT ø 5,OMM
39 00101712 DIAPHRAGM BUSHING SOCKET
40 00158312 PROTECTION CAP FOR HEATING
41 59230140 BLEEDER PIPE
43 14670312 FLEX PIPE
44 14670412 END WITH BAR
51 42006712 SERVE ELEMENT
52 42006812 CONTROL KNOB
55 42155012 AIR FILTER ELEMENT CABIN
103 61583140 EXPANSION TANK
104 42008412 COVER
106 05847312 HOSE FITTING
107 55161540 SOCKET
109 29566440 HOSE, O 18MM
110 29544240 HOSE CLAMP
112 50978998 BOLT
113 50978898 SCREW
115 50987098 NUT ED 51116298
118 51002898 DISC / PANE
133 66815040 FUEL TANK
134 66980540 TANK SOCKET
151 08048540 FUEL TANK CAP
152 25517640 FUEL TANK STRAINER
153 31312099 SCREW
154 34027599 SEAL RING
155 42024612 FILL LEVEL DISPLAY
