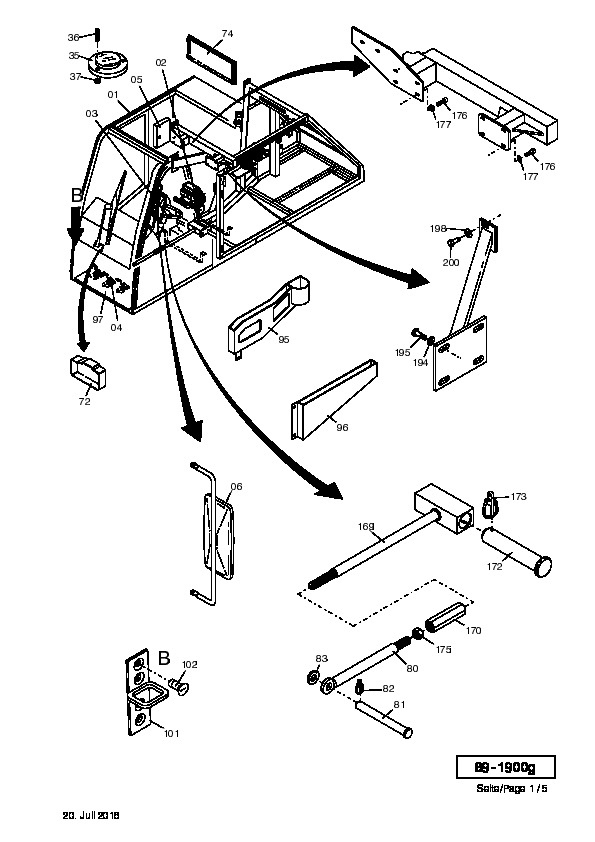

Parts for Demag AC 25, Figure 89-1900G:
Part Number 17441140: CABLE STRAP
Pos nr Part number Description Weight in kg
1 61650040 CABINSEE PAGE 993-0072A, ETC.
2 58903940 HEATER ARR.SEE PAGE 89-1940, ETC.
6 55127640 EXTERIOR MIRROR
31 30462812 BOFFOMSHEET
32 00177312 BREATHER
35 65427040 BOX LEVEL
36 50980398 CYLINDER BOLT
37 50985998 NUT 0.0005
38 00177212 Y-PîPE
39 50987998 DISC NEW:34050699
42 00140012 SILICON
48 51032198 DISC 0.002
50 17441140 CABLE STRAP
55 12526699 BOLT
58 65406040 LINING STRAP
62 28892840 CLAMP 0.03
64 51162898 SCREW
69 50220698 SCREW
70 30469312 PPE ASSY.
71 30462212 PIGEON HOLE, LEFT TOP
72 51234440 WIPER MOTOR - COVERING
74 55135040 PLATE
77 61582440 RETAINER
78 61582540 RETAINER
79 50987098 NUT ED 51116298
80 51325898 EYEBOLT
81 61581740 PIN
82 55105340 FORE LOCK
83 61581640 RING PLATE
84 61579540 HOLBOW PROFILE
85 65510640 PLUG
86 51043298 CYLINDER BOLT
91 51031798 DISC 0.1
92 50983398 BOLT
93 66930340 CABIN FLANGE
101 41212112 RETAINER EF 30039112
102 51046698 SCREW
103 30462312 PIGEON HOLE
104 65512240 RUBBER SECTION
109 16769240 HEADER
110 30162812 RETAINER BOX LEVEL
116 30463212 RUBBER PLATE
120 00069412 OPERATOR
121 58904640 CONTROL CONSOL
124 34050699 DISC
125 50704998 COUNTERSUNK SCREW
126 49094340 FITTING
127 50695798 SCREW
129 30163212 MODIFICATION CONTROLL CONSOLE HINGED
130 30136012 RETAINER
131 51015098 SCREW
134 51316598 FILLISTER-HEAD SCREW
138 30036212 RETAINER
139 66874740 RETAINER
140 51344598 BOLT
141 50978898 SCREW
150 30162912 HINGED CONSOLE
152 00137012 MAGNETIC CATCHER, DOUBLE MAGNET
153 30163312 COUNTER PLATE
169 66930640 BEARING BRACE
170 51325998 SETTING NUT
172 61669840 PIN
175 50986898 NUT
176 51020898 SCREW
177 51068298 DISC 0.010
198 51049498 WASHER
200 50982998 SCREW
207 67105140 FLAT STEEL
208 67105240 FLAT STEEL
211 14330812 SHEET
212 14330912 RUBBER PLATE
213 00074012 BLIND RIVET
