Search for Crane Part number

(click on image to open PDF document)

Figures in which the part appears:
AT part (Grove )
9049112882 (Grove RT 540E )
7049990346 (Grove TT 865 )
7049990347 (Grove TT 865 )
Also known as:
9049109330, 09049109330, 009049109330
Parts for Grove TT 865, Figure 7049990347:

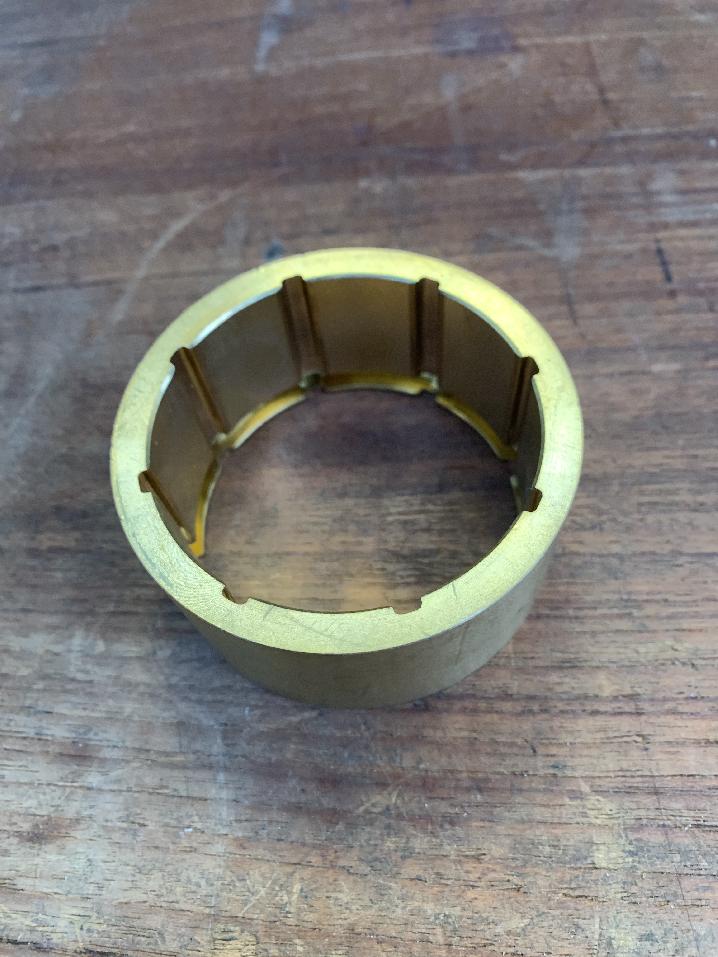

Part Number 9049109330: BUSHING BRONZE
Pos nr Part number Description Weight in kg
10 7049990347 COMPLETE ASSEMBLY
10 9049109808 AXLE HOUSING
100 9049991267 NUT 0.59
100/2 9049109319 SCREW M8X12
100/3 8926132 BUSH
101 9049109320 DISK
102 9049109537 BEARING
105 9049109322 BEARING
106 9049108805 SEAL
110 9049108414 HUB, WHEEL 32
112 9049108415 PLUG 1.19
120 9049108416 STUD, WHEEL 0.290
123 7659000270 NUT 0.136
125 9049109326 BRAKE ASSY 500X180 DE
125 9049109327 BRAKE ASSY 500X180 DE
127 9049108607 HEXAGON SCREW
129 9049992123 COVERPLATE DUPLEX
129 9049108248 LOCK RING
129 9049992124 DECKPLATTE
129 8989274 SCREW M8 X 12
129 9049994616 SCREW M8 X 16
129 8395733 WASHER
130 9049991026 SEALING PLUG
131 9049991027 RUBBER PLUG BIG
132 9049332122 BRAKE SPIDER
133 9049107292 COMPRESSION SPRING 0.032
133 9049991255 PULL SPRING 0.140
133 8395732 YOKE
136 9049109328 BRAKE SHOE WITH LINING 500X180 MM
138 9049108508 EXPANDER UNIT KNOTT DUPLEX
138 9049108510 REPAIR KIT EXPANDER DUPLEX
138 9049108512 SPRING
138 9049108514 CROSS STRUT
138 9049108515 CROSS STRUT
138 9049108608 WASHER
138 9049991018 LEAFSPRING
138 9049991030 SCREW
138 9049108511 REPAIR SET 0.07
138 9049108513 BOLT 0.16
138 9049108509 REP KIT
153 9049994629 BRAKE DRUM
155 9049109552 TRACK ROD LEVER
155 9049109553 STEERING LEVER
156 9049990983 HEXAGON SCREW
159 9049991292 COVER
160 8398040 SCREW 0.13
162 9049991915 GREASE NIPPLE 0.010
163 9049109554 TUBE
165 9049107886 WASHER BRONZE 0.242
165 9049109330 BUSHING BRONZE 0.340
166 9049109332 WASHER STEEL 0.32
169 9049108425 STEERING KNUCKLE 5.400
170 9049109302 STEERING KNUCKLE
