Search for Crane Part number

(click on image to open PDF document)

Figures in which the part appears:
At parts (Grove )
GMK (Grove GMK )
9049112882 (Grove RT 540E )
7049990346 (Grove TT 865 )
Also known as:
9049991044, 09049991044, 009049991044
Parts for Grove TT 865, Figure 7049990346:

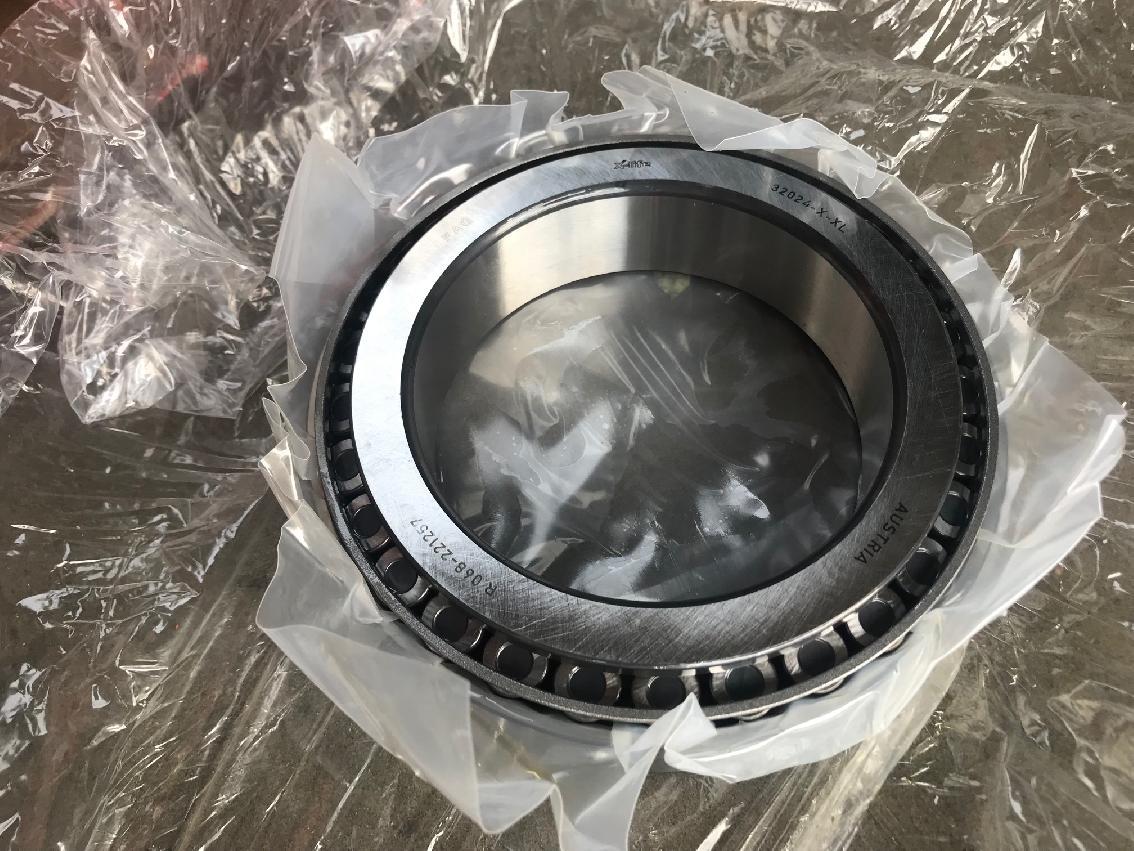

Part Number 9049991044: BEARING
Pos nr Part number Description Weight in kg
10 9049109807
16 9049108455 SCREW 0.200
17 9049109577 NUT
20 9049107891 DIFFERENTIAL RING GEAR
21 9049107244 THRUST WASHER
22 9049107245 THRUST WASHER
23 9049107246 GEAR
24 9049107247 DIFFERENTIAL PINION
25 9049107248 SPIDER
27 9049991841 BEARING
28 9049107249 SCREW
30 9049107250 SCREW
31 9049107251 BUSHING
40 9049108240 BEVEL GEAR SET
51 9049108654 RADAIL SEAL RING 0.09
52 9049107263 BEARING 0.001
52 9049107264 BEARING
55 9049107265 SCHEIBE
58 9049107266 DISK
60 9049107895 HOUSING
61 8993909 HEX SCREW M14 X 70
62 9049109359 DISK
93 9049107897 UNIVERSAL JOINT
94 9049108804 RADIAL SEAL RING NBR 0.025
94 9049991324 RADIAL SEAL RING NBR 0.025
95 8989287 SNAP RING
97 9049990990 BEARING
100 9049991238 HEXAGON SOCKET SCREW 0.012
100 9049991267 NUT 0.59
102 9049991044 BEARING 3.250
105 9049990946 BEARING
106 9049991001 SEAL RING 0.16
106 9049108805 SEAL
110 9049994614 WHEEL HUB 32
120 9049108648 WHEEL STUD L=110 MM 0.322
123 7659000270 NUT 0.136
127 9049108607 HEXAGON SCREW
129 9049109326 BRAKE ASSY 500X180 DE
129 9049109327 BRAKE ASSY 500X180 DE
129 9049992123 COVERPLATE DUPLEX
129 9049108248 LOCK RING
129 9049992124 DECKPLATTE
129 8989274 SCREW M8 X 12
129 9049994616 SCREW M8 X 16
129 8395733 WASHER
130 9049991026 SEALING PLUG
131 9049991027 RUBBER PLUG BIG
132 9049992122 BRAKE BRACKET
133 9049107292 COMPRESSION SPRING 0.032
133 9049991255 PULL SPRING 0.140
133 8395732 YOKE
136 9049109328 BRAKE SHOE WITH LINING 500X180 MM
138 9049108508 EXPANDER UNIT KNOTT DUPLEX
138 9049108510 REPAIR KIT EXPANDER DUPLEX
138 9049108512 SPRING
138 9049108514 CROSS STRUT
138 9049108515 CROSS STRUT
138 9049108608 WASHER
138 9049991018 LEAFSPRING
138 9049991030 SCREW
138 9049108511 REPAIR SET 0.07
138 9049108513 BOLT 0.16
138 9049108509 REP KIT
153 8391728 BRAKE DRUM 68
154 9049991874 SCREW 0.03
155 9049108243 GROVE
155 9049108244 GROVE
155 9049108242 TRACK ROD LEVER
156 9049990983 HEXAGON SCREW
159 9049991292 COVER
160 8398040 SCREW 0.13
162 9049991915 GREASE NIPPLE 0.010
163 9049108245 GROVE
165 9049107886 WASHER BRONZE 0.242
165 9049109330 BUSHING BRONZE
166 9049109332 WASHER STEEL 0.32
167 8926135 PIN 0.001
169 9049108823 KING PIN
170 8391735 STEERING KNUCKLE
180 9049107317 O-RING PLANETARY GEAR DRIVE 0.001
180 9049108668 O-RING PLANETARY GEAR
180 9049108824 PLANETARY GEAR DRIVE 45
180 9049992102 PLANETARY HOUSING 21
181 8994004 PLANETARY GEAR
182 8994005 SUN GEAR
183 9049991053 PLANETARY PIN 0.8
184 8994006 RING GEAR
185 9049992103 RING GEAR CARRIER 5.7
186 08994012 BEARING
187 9049991056 THRUST WASHER 0.025
188 9049992104 WASHER 0.1
189 9049991055 THRUST WASHER 0.001
191 8994013 RING 0.09
192 9049991890 FEDER 0.005
193 9049107898 CIRCLIP
194 9049108671 PLUG
194 9049109294 SEALING RING
195 9049107242 PLUG 0.02
195 9049109352 RING, SEAL
196 8992356 SCREW M10 X 20
