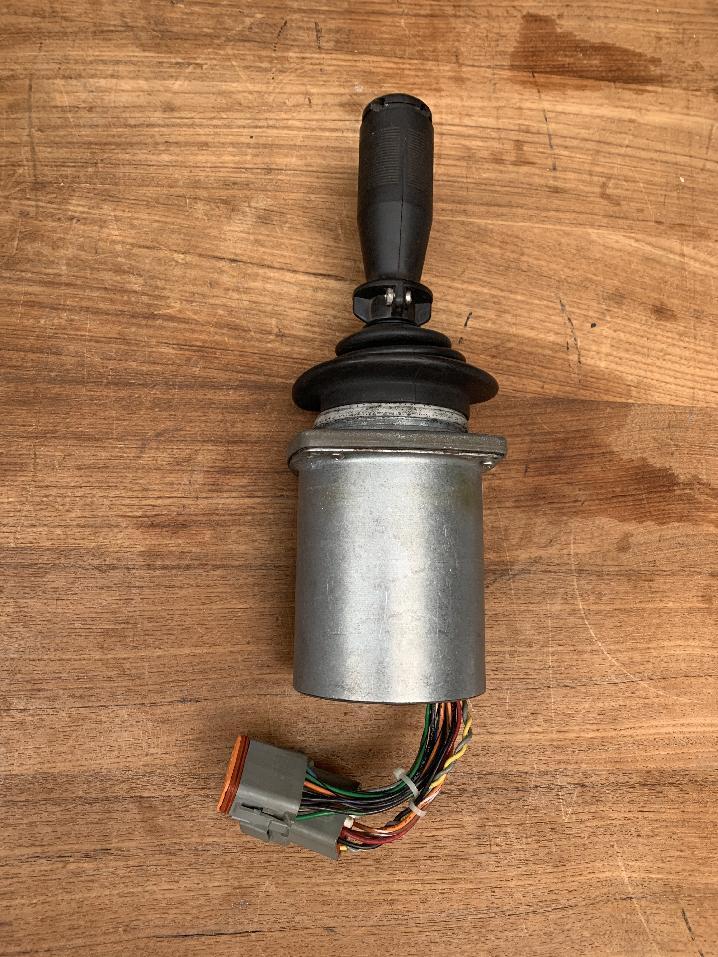

Grove 7352100095 - CONTROLLER ASSEMBLY

Pos nr	Part number	Description	Weight in kg
1	7245100056	COVER, ARMREST	0.462
2	7033001063	PAD, ARM REST	0.222
3	7115141450	CAP SCREW	0.015
4	7950140141	WASHERI/IT" HARROW	0.050
5	7950140050	LOCK WASHER	0.006
6	6705018338	PLATE	0.181
7	6033100018	ARMREST
8	7110141118	SCREW,CAP 1/4"-20 N.0 X 131811	0.008
9	7616000519	MAGNET	0.163
10	7949001227	WASHER, BEVELED	0.009
11	7660220200	NUT, HEX JAM	0.054
12	7199001289	BUSH ING	0.010
13	7949000236	WASHER	0.027
14	6245100081	SUPPORT, ARM	0.020
15	6872100045	SWITCH ASSEMBLY - PROXIMITY	0.05
16	7661110003	HEX NUT M4-8 ISO 4032	0.100
17	7121111301	SLOT PMS M4X30\|4.8 ISO 1580	0.004
18	7951110210	L WASHER 4 ST DIN 7980	0.001
19	7951110014	WASHER\|FLAT M4 ZC	1.590
20	7660141601	LOCKNUT, HEX	0.004
21	7111151664	BOLT, CARRIAGE	0.025
22	7950150141	WASHER 5/16" I.D.	0.24
23	7660152200	NUT, ACORN	0.007
24	7949001186	WASHER, BLACK NYLON	0.005
25	6245100077	BRACKET	0.640
26	7364100179	BEZEL, L-SERIES 3 GANG LM3	0.022
27	7511000093	KNOB, FLUTED	0.062
28	7950140161	WASHER, 1/4" I.D. FLAT WIDE	0.024
29	7110151618	CAP SCREW	0.191
30	7792151221	SCREW	0.009
31	7616000517	MAGNET-CUP	0.191
33	7660151601	LOCKNUT	0.006
34	7101101210	SCREW, MACHINE	0.005
35	7258001451	CAP, 1/4"	0.040
36	7352100097	CONTROLLER ASSEMBLY - 8-32 VOLT	10
37	7352100095	CONTROLLER ASSEMBLY - 8-32 VOLT	3
38	7242100005	PLUG, L SERIES LHI PANEL	0.008
39	7345001746	TERMINAL, MALE 16- 14 AWG	0.45
40	7345001744	TERMINAL, FEMALE 16 - 14 AWG	0.160
41	6705170914	PLATE	0.070
42	7242100002	BUTTON, SQUARE	0.020
44	7872100146	SWITCH, L-SERIES SWING BRAKE	0.030
46	7872100118	SWITCH, L-SERIES MAIN HOLST	0.50
48	6512100837	HARNESS ASSEMBLY - SEAT	0.940
49	7429000011	NUT WELL #10-32UNF	0.005
50	7576000311	BELT, SEAT	1.238
52	7872100139	SWITCH, L-SERIES REAR STEER	0.160
