Search for Crane Part number

(click on image to open PDF document)

Figures in which the part appears:
GMK (Grove GMK )
2159910216 (Grove RT 540E )
Also known as:
7128271358, 07128271358, 007128271358
Parts for Grove RT 540E, Figure 2159910216:
Part Number 7128271358: SET SCREW, M20X30-12.9
Pos nr Part number Description Weight in kg
7755021002 O-RING 0.023
6069100000 BEARING 0.100
6069100001 BEARING 0.280
7069100041 BEARING 0.176
7671100079 WEAR PAD 0.350
7671100081 TEFLON PLUG 0.014
7755916002 O-RING 0.002
7069100031 BEARING 1.540
1 2159910178 SECTION, BOOM BASE
2 2159910174 SECTION, INNER MID 1407.391
3 2159910173 SECTION, OUTER. MID
4 2159910176 SECTION, FLY AND NOSE
5 6372100507 CYLINDER ASSEMBLY - TELESCOPE
6 7246100338 CABLE ASSY, EXTEND 19
7 7246100417 CABLE, 9.5MM DIA SYNCHRO 17.500
8 7246100415 CABLE, RETRACT 10.960
9 7246100416 CABLE, 8MM DIA RETRACT 4.370
12 7950180161 FLATWASHER 1/2" I.D. 0.014
13 7951210210 L WASHER|12 ST DIN 7980 0.004
16 7447161603 ELBOW, 90 DEGREE MALE 0.252
20 4159910619 COVER 6.460
22 4159910033 ANGLE, MOUNTING 0.214
23 7115150478 SCREW, FLANGE
26 7949000235 WASHER 1/2 ID 0.006
28 7671100021 PAD, SIDE WEAR 0.500
30 2159910131 ANCHOR 0.310
32 7951190014 FLATWASHER 1OMM I.D. 0.005
33 7951190210 LOCKWASHER 10MM 0.005
34 7126191353 HEX SCREW 0.025
35 6671000236 PAD, WEAR 1
36 4159110165 PLATE 0.050
37 4159110164 PLATE, ADJUSTING 0.360
39 7951170210 LOCKWASHER 8 MM 0.002
40 7126171253 CAP SCREW, M8 X 25MM HEX HEAD 0.090
41 4159910612 PLATE, KICKBACK
42 7126171153 HEX HD BOLT M8 0.010
43 4159910549 SHIM, 4 HOLE 1 MM 0.080
44 6671000177 PAD, WEAR 0.080
45 4159910262 SHIM, 2MMS1DEPAD 0.046
46 4159910261 SHIM, 1 M SIDE PAD 0.200
48 7661190003 NUT, HEX 0.011
49 6671000166 PAD, WEAR 0.064
51 6689100117 PIN
52 7949000333 WASHER 0.050
53 6718100017 SHEAVE 4.96
54 2159910215 GUARD 1.660
56 7661170003 HEX NUT 8MM X 1 0.005
57 7440000400 90 DEG GREASE|FITTING 0.440
58 4159910571 PLATE, CABLE ANCHOR 4.190
60 7949000230 WASHER 0.063
61 7661340004 HEX NUT|M30 10FLZN ISO4032 0.210
62 4159910260 PLATE, ROUND KEEPER 0.300
63 6199100098 BUSHING 0.090
64 7128271358 SET SCREW, M20X30-12.9 0.170
65 7671100082 WEAR PAD ASSY 0.380
66 4165910219 PAD HOLDER
67 7949000263 WASHER, HARDENED 0.010
72 4159910616 SHIM,3 HOLE IMM 0.430
73 2159910166 ANCHOR, LEFT HAND 0.270
74 2159910167 ANCHOR, RIGHT HAND 0.270
75 2159910180 MOUNT, SHEAVE 5.850
76 6718100000 PULLEY 1.896
77 7440000000 GREASE NIPPLE 0.006
78 6689100120 PIN 0.005
79 6718100015 PULLEY 2.800
80 2159910171 RETAINER, CABLE 2.700
82 7690082410 PIN, COTTER 0.004
84 4159910551 SHIM, 2 HOLE 1 M 0.450
85 4159910613 PLATE, KICKBACK 3.280
86 2159910181 FOOT, TELESCOPE CYLINDER 3
87 7111160807 SCREW, MACHINE 0.027
90 2155910039 MOUNT, SHEAVE 14.430
91 6949001174 PLATE, SPACER 0.050
92 4155910024 SHAFT, SHEAVE
93 6718100006 PULLEY 13.636
94 6705006974 PLATE 0.562
95 7118180850 CAP SCREW 0.150
96 4140900205 ROPE 0.703
97 7950140141 WASHERI/IT" HARROW 0.050
98 7115140650 BOLT, HEX 1/4"-20 HC X 3/9 - GPO S 0.036
99 4165910073 PLATE, KEEPER 0.03
100 4159901579 PLATE, KEEPER 0.03
101 6199100030 BUSHING 0.59
102 7949000236 WASHER 0.027
104 4159900070 PLATE 0.222
105 6671000266 PAD, WEAR 0.853
300 6718100031 SHEAVE ASSEMBLY - 5/8" ROPE 9.403
301 7689000023 PIN 1.769
302 7689000701 CLIP, HITCH PIN 0.015
303 7601000955 S-HOOK 0.018
304 7690101610 COTTER PIN 0.19X1IN ST 0.020
305 9286100001 CHAIN 0.090
308 6810100132 SHAFT
309 7949000269 WASHER, KEYED 0.190
310 7949000190 WASHER 0.050
311 7659000081 LOCKN UT 0.040
312 4159910026 CAP, END
314 4159900304 SHIM (054412) 0.058
315 4197910236 PLATE, ANTI 2 BLOCK
316 7690102410 COTTER PIN 0.006
* Selected parts are automatically added to your RFQ list *

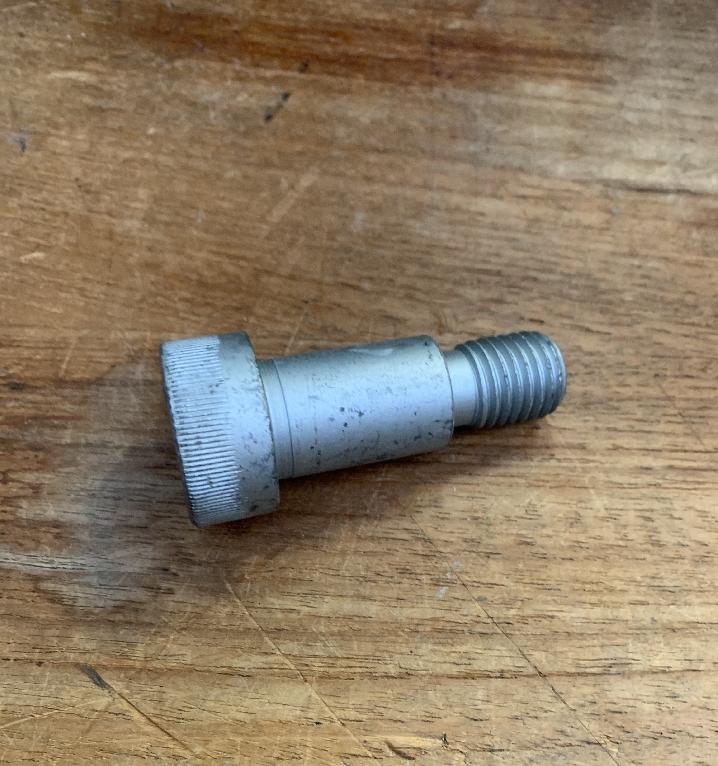

7128271358 Grove GMK SET SCREW, M20X30-12.9
