Grove 9904102555 - OIL SEAL

Pos nr	Part number	Description	Weight in kg
1	7904000071	FUNK TRANSMISSI
1	9904102434	CLUTCH
1	9904102464	SHAFT ASSY
1	9904102476	STR ASSY
1	9904102527	RETAINER
2	7755326000	O-RING	0.050
2	7755338000	ORING	0.050
2	9904102422	PLUG
2	9904102435	PISTON	0.500
2	9904102452	PISTON	0.408
2	9904102465	GEAR
2	9904102500	VALVE
2	9904102533	BLOCK
3	7755240000	ORING	0.004
3	9904102436	O	0.050
3	9904102466	WASHER
3	9904102477	SCREEN ASSY
3	9904102501	SPRING
3	9904102534	SHAFT
4	7069000133	BALL BEARING	0.400
4	7755328000	O-RING	0.004
4	9904100647	PIN
4	9904102417	PLACE, BOLT
4	9904102424	PLUG
4	9904102467	RING
4	9904102479	SPACER
4	9904102530	SHIM
5	9904102480	GASKET	0.006
5	9722100542	BREATHER
5	9904102425	GASKET	0.230
5	9904102438	CLUTCH PLATE	0.091
5	9904102498	VALVE
5	9904102536	ARM-SHAFT
6	9904102415	SEAL.OIL	0.112
6	9904102426	BUSHING
6	9904102439	SEPARATOR	0.140
6	9904102469	GEAR
6	9904102481	CAP
6	9904102497	SPRING
7	9904102470	BEARING
7	9904102495	PLUG
8	7755916000	O-RING	0.001
8	9904100966	CONE
8	9904102418	YOKE
8	9904102427	CAPSCREW
8	9904102441	SNAP RING
8	9904102483	CAP
9	7755114000	ORING	0.010
9	9904102429	OIL TROUGH
9	9904102442	SPRING
9	9904102502	SPRING
9	9904102540	ROLL-PIN
10	9904102419	GASKET
10	9904102443	RETAINER
10	9904102473	HUB
10	9904102503	VALVE
11	9904100615	WASHER
11	9904102413	RETAIN RNG
11	9904102416	WASHER
11	9904102474	BEARING
11	9904102504	DOWEL PIN
11	9904102542	RING

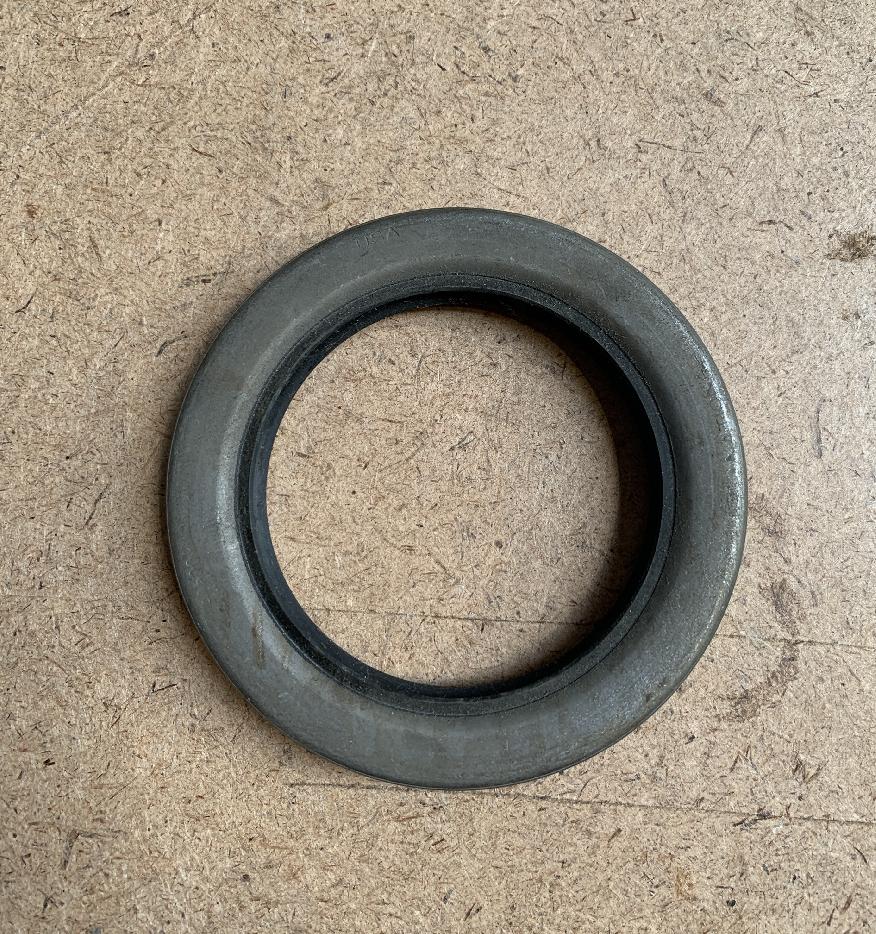

12	9904102555	OIL SEAL	0.140
12	9904102433	OIL TROUGH
12	9904102461	BEARING
12	9904102475	CONE
12	9904102505	PLUG
13	7755910000	RING	0.005
13	9904102445	RETAINER
13	9904102462	GEAR & HUB
13	9904102543	FORK-DISC
14	9904102446	GEAR WELD
14	9904102463	RING, RETAINER
14	9904102482	CAPSCREW
14	9904102544	DISC
15	9904102447	RING
15	9904102459	BEARING	1.089
15	9904102531	CAPSCREW
15	9904102545	SHAFT	1
16	7660180000	NUT, HEX 1/2"-13 DC - GPO A	0.016
16	9904102448	BEARING
17	9904102432	FORK
17	9904102449	HUB & GEAR
17	9904102510	STEM ASSY
18	9904102511	PLUG
19	9904102512	PLUG
20	7872000115	SAFETY SWITCH	0.060
21	9274100201	SEAL, OIL	0.010
21	9904102515	SPACER
22	9904102514	PLUG
23	9904102801	GASKET	0.200
24	9904102520	SPRING
25	9904102521	BALL
28	9904102523	WASHER
30	7872000197	PRESSURE SWITCH	0.050
31	7444010190	ELBOW, 45 DEGREE	0.024
32	9904102524	VALVE
33	9904102525	GASKET	0.034
34	9904102526	SCREW
37	9904102775	GASKET	0.004
