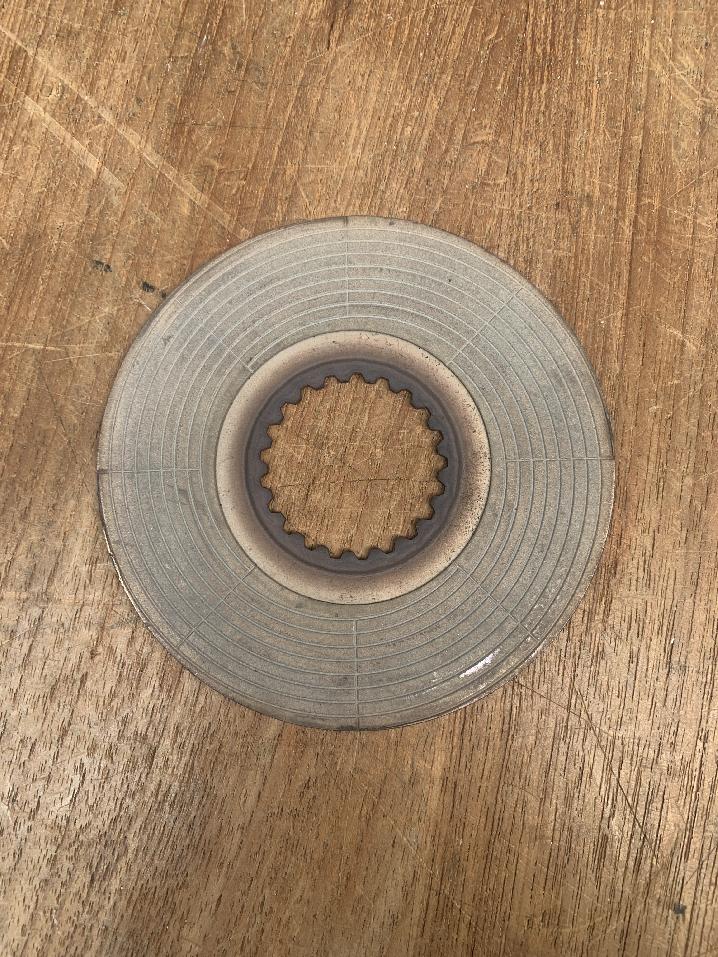

Grove SKB841569 - BRAKE DISC

Search for Crane Part number

(click on image to open PDF document)

Figures in which the part appears:

Also known as:
SKB841569

Parts for Grove AT 422, Figure 7734000108:
Part Number SKB841569: BRAKE DISC

Pos nr	Part number	Description	Weight in kg
1	7734000108	PLANETARY GEAR REDUCER	41.958
1	9734100623	SHAFT OUTPUT	2.948
2	9734100624	HUB
3	9734100625	CARRIER PLANET
4	9734100646	CARRIER PLANET
5	SKD841574	COVER END
6	9734100628	GEAR PLANET
7	9734100648	GEAR INTERNAL
8	9734100649	SUN SECONDARY
9	9734100629	RACE THRUST
10	9734100630	ROLLER NEEDLE
11	9734100631	SHAFT PLANET
12	9734100632	SPACER
13	9734100633	SEAL OIL	0.050
14	9734100388	RACE, THRUST	0.008
15	9734100650	RACE THRUST
16	9734100387	BEARING	0.018
17	9734100651	BRG NEEDLE
18	9734100652	RACE THRUST
19	9734100653	SHAFT PLANET
20	9734100634	O-RING	0.045
21	9734100635	SEAL OIL	0.001
22	9734100385	CONE	0.454
23	9734100386	CUP	0.266
24	7118163250	HEX HD CAP SCREW
25	7950160050	LOCK WASHER 3/8" PEG	0.080
26	9734100636	SPACER
27	9734100435	PIPE PLUG
28	7690081045	PIN; SLOTTED SPRING,WLM110004
29	6810002032	INPUT SHAFT
30	9734100638	SHIM
31	9734100639	SHIM
32	9734100640	SHIM
33	9734100655	SPACER
34	9734100656	PLANET PRIMARY
35	9734100641	LOCKNUT
36	9734100642	LOCKWASHER
38	SKB841569	BRAKE DISC	0.075
39	6705007126	STATOR	0.170
40	6705007946	STATOR
41	SKC841572	HOUSING CYLINDER
42	6372001332	HEAD
43	SKC841573	BRAKE PISTON
44	9734100645	SPRING COMPRESS	0.050
45	7755246000	O-RING	0.006
46	7755246609	BACKUP RING	0.001
47	7755238000	RING	0.004
48	7755238609	BACKUP RING	0.005
50	7949000377	WASHER	0.015
