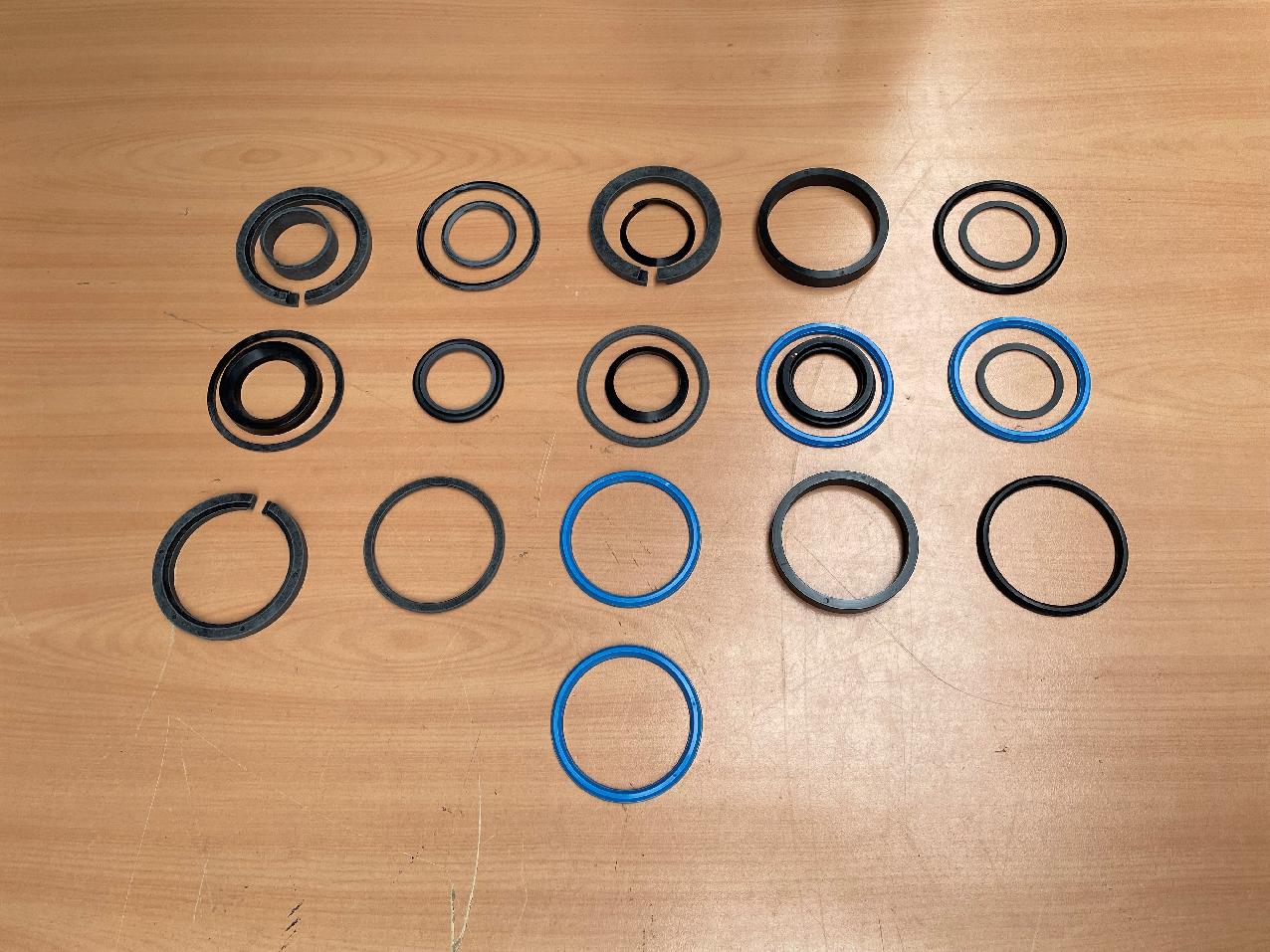

Grove 9752100705 - HIT,REPAIR

Search for Crane Part number

(click on image to open PDF document)

Figures in which the part appears:

Also known as:
9752100705, 09752100705, 009752100705

Parts for Grove AT 422, Figure 6372003192:
Part Number 9752100705: HIT,REPAIR

Pos nr	Part number	Description	Weight in kg
1	6372003192	COMPLETE ASSY
1	9752100705	HIT,REPAIR	0.450
1	6372003193	BARREL
2	6701000334	PISTON
3	7755018002	O-RING 739 ID	0.005
4	7785160802	SET SCREW	0.011
5	7794000623	SEAL ASSY 3.50" PISTON HYDROLO
6	7753000731	RING - 3.50" GUIDE LOCK
7	7754000180	LOW TEMP O-RING
8	7755327609	BACK UP RING
9	6768002193	ROD	1
10	6372003061	HEAD
11	7754000174	O-RING, LOW TEMPERATURE	0.100
12	7755338609	RING, BACK-UP	0.004
13	7753000175	RING, WEAR	0.100
14	7794000617	BUFFER SEAL ASSY (1.750" ROD)
15	7794000628	1.750 DIA DEEP Z ROD SEAL
16	6753000768	RING, RRETAINING
17	7794000007	RING-WIPER (1.7	0.008
18	7440000400	FITTING, 90 DEGREE GREASE	0.44
19	7258000601	CAP
