Grove 3045403

Search for Crane Part number

(click on image to open PDF document)

Figures in which the part appears:

Also known as:
3045403, 03045403, 003045403

Parts for Grove GMK 6300L, Figure 3140017-ETL:

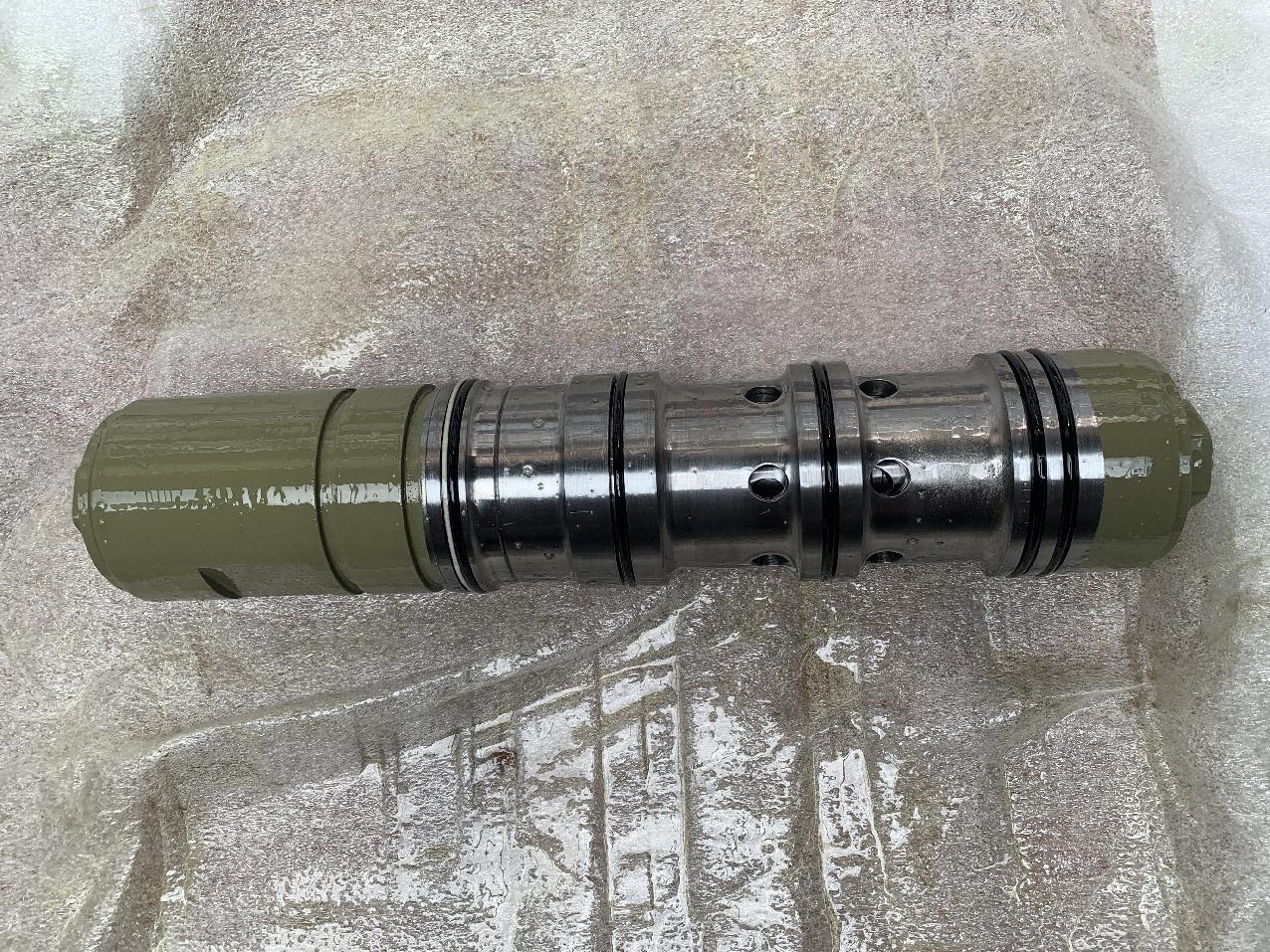

Part Number 3045403: VALVE

Pos nr	Part number	Description	Weight in kg
1	3141034	SET OF SEALS	0.2
2	3141035	CYLINDER HEAD CPL.
3	3141036	GUIDE BUSH
4	3316912	GUIDE BUSH	1.660
5	3141037	CONTROL UNIT
6	3045403	VALVE	13
7	3135826	THERMO EXCESS-PRESSURE VALVE
8	3319952	PRESSURE LIMITING VALVE	0.398
9	3316214	VALVE	13
10	3327571	PROXIMITY SWITCH	0.024
11	3141038	PIPING UNIT CPL.
12	3141039	PISTON ROD CPL.
13	3316220	PISTON
14	3138613	AIR BLEED VALVE	0.010
15	0114137	HEXAGON SOCKET HEAD CAP SCREW	0.01
16	3144095	STIRRUP
17	0103767	HEXAGON SOCKET HEAD CAP SCREW
18	3144096	PLATE
19	0026787	HEXAGON SOCKET HEAD CAP SCREW
20	2314798	SCREW PLUG
21	0436647	SEALING RING	0.005
22	3045412	SCREW CONNECTION
23	0106065	HEXAGON SOCKET HEAD CAP SCREW
24	3144097	IMPLEMENTATION TUBE
25	3144098	COVER
26	3144099	HEXAGON SOCKET HEAD CAP SCREW
27	3144100	DOWEL PIN
28	1147245	SCREW PLUG
29	0117132	SEALING RING	0.003
31	1146969	HEXAGON SOCKET HEAD CAP SCREW	0.1
33	1921550	BALL	0.001
34	3045407	SCREW PLUG
35	3044312	SAE-SAELING FLANGE
