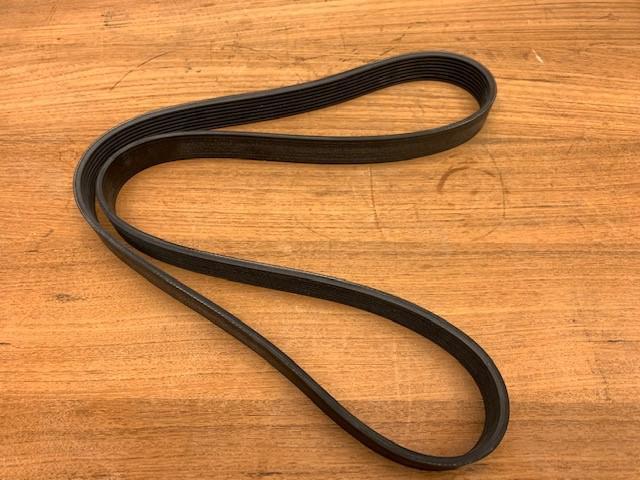

Grove 3328612 - V-RIBBED BELT

Search for Crane Part number

(click on image to open PDF document)

Figures in which the part appears:

Also known as:
3328612, 03328612, 003328612

Parts for Grove GMK 5130-2, Figure 3191809-ETL:
Part Number 3328612: V-RIBBED BELT

Pos nr	Part number	Description	Weight in kg
1	3328553	FUEL FILTER CPL.	2.640
2	3045797	START-STOP-SWITCH	0.001
3	3139282	NUT
4	3328610	MR-CONTROL UNIT	1.910
5	3316031	FAN CPL.	3.95
6	3316032	VENTILATOR COUPLING	2.37
7	3328611	WATER PUMP CPL.	10.300
8	3135616	OIL PUMP
9	3135609	OIL RADIATOR	0.001
10	3316033	THERMOSTAT	0.128
11	3328555	PULLEY FOR V-RIBBED BELT	1.543
12	3328612	V-RIBBED BELT	0.540
13	3328613	OILFILTER CPL.	0.001
14	3135751	BELT DRIVE DISK	0.001
15	3138380	OIL PRESSURE TRANSMITTER	0.058
16	3328278	STARTER	9.041
17	3328366	ALTERNATOR	7.78
18	3319657	TEMPERATURE TRANSMITTER	0.180
19	3045793	TURBO	0.12
20	3135758	CYLINDER HEAD COVER
21	3328615	OIL-LEVEL SENDER	0.18
22	3135524	OIL-MEASURING STICK	0.520
23	3329274	CYLINDER HEAD SEALING SET	0.001
24	3139165	BELT DRIVE DISK	4
25	3329276	GASKET OIL SUMP PAN	0.046
26	3139166	WASHER	0.010
27	3141856	NUT	0.020
28	3329825	SEALING RING	0.01
29	3329826	SCREW PLUG
30	3135752	OVERFLOW VALVE	0.140
100	3135610	OIL-MEASURING STICK
