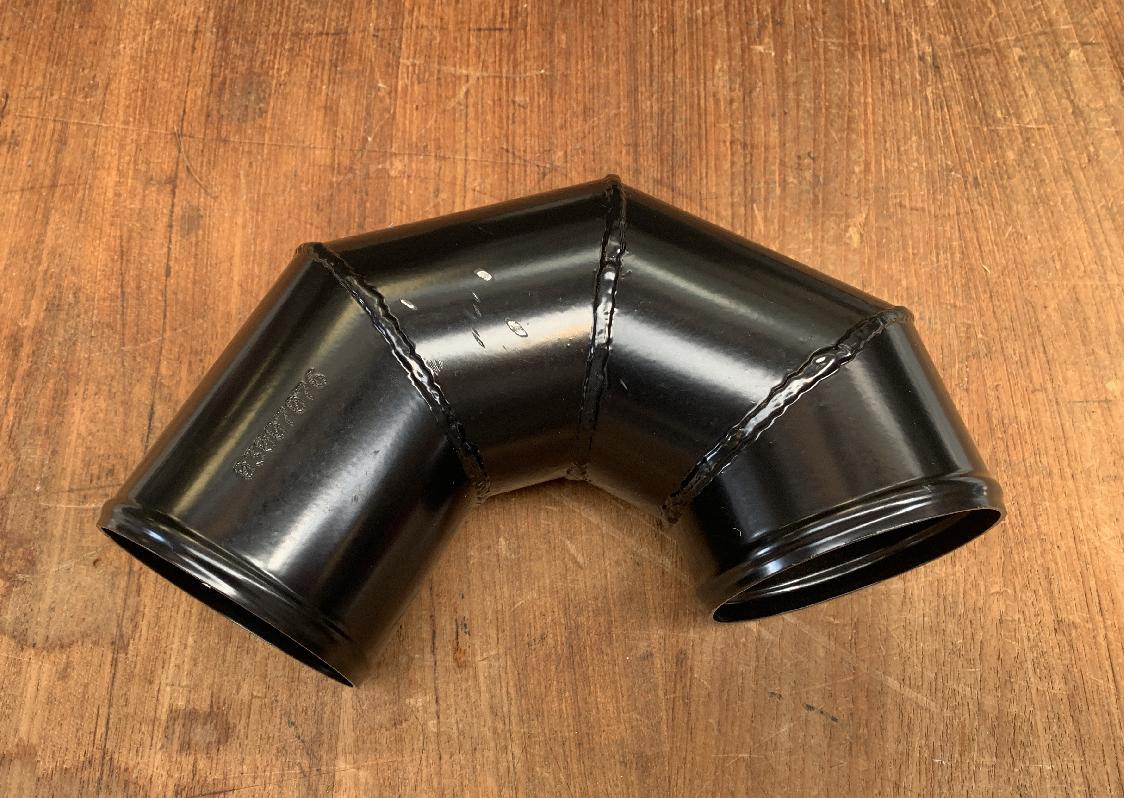

Grove 3007076 - PIPE ELBOW

Search for Crane Part number

(click on image to open PDF document)

Figures in which the part appears:

Also known as:
3007076, 03007076, 003007076

Parts for Grove GMK 5130-2, Figure 3125363-ETL:
Part Number 3007076: PIPE ELBOW

Pos nr	Part number	Description	Weight in kg
1	3191809	DIESEL ENGINE
2	3317140	CENTAFLEX CLUTCH	46
4	3046853	SUCTION AIR FILTER	6.500
5	2318430	RETAIN ER	0.41
6	2318431	RAIN CAP	0.44
7	3046248	MAINTENANCE SWITCH	0.180
8	3093868	RADIATOR CIRCUIT
9	3099578	FUEL-DIAGRAM
12	3325868	INTAKE HOSE	1.52
13	3007076	PIPE ELBOW	0.4
14	2083807	FUEL TANK	50
15	2212476	MOUNTING STRAP	0.92
16	2212477	MOUNTING STRAP	1.01
17	2212431	SECTION
19	1146762	HEXAGON SCREW M8X35	0.19
20	1686701	WASHER M8	0.005
21	1147815	HEXAGON SCREW	0.02
22	1678864	HEXAGON NUT M6	0.005
23	1925033	WASHER 6	0.005
24	1678799	HEXAGON NUT	0.014
25	1368030	WASHER M10	0.005
29	2216282	HOSE CLAMP	0.07
30	2216280	HOSE CLAMP	0.06
31	0436507	HEXAGON BOLT	0.1
32	0206533	WASHER I7 ST DIN 7349
33	1207873	WASHER	0.01
34	1685244	HEXAGON BOLT	0.02
35	2314439	WASHER 10	0.005
36	1207366	HEXAGON SCREW	0.09
37	3012914	ENGINE CARRIER, REAR LEFT
38	3007082	ENGINE CARRIER, REAR RIGHT
41	0103207	HEXAGON SCREW
42	1680190	HEXAGON SCREW
44	3046561	MEGI-BEARING	1.8
46	1571750	SUPPORT RAIL NUT	0.030
47	1576128	CLAMP (PAIR)	0.03
49	3011784	MOUNTING PIECE	0.1
50	0106079	HEXAGON SOCKET HEAD CAP SCREW	0.09
51	0437642	HEXAGON NUT M8	0.003
52	3041996	DRIVER	0.100
53	3041469	PASTE
