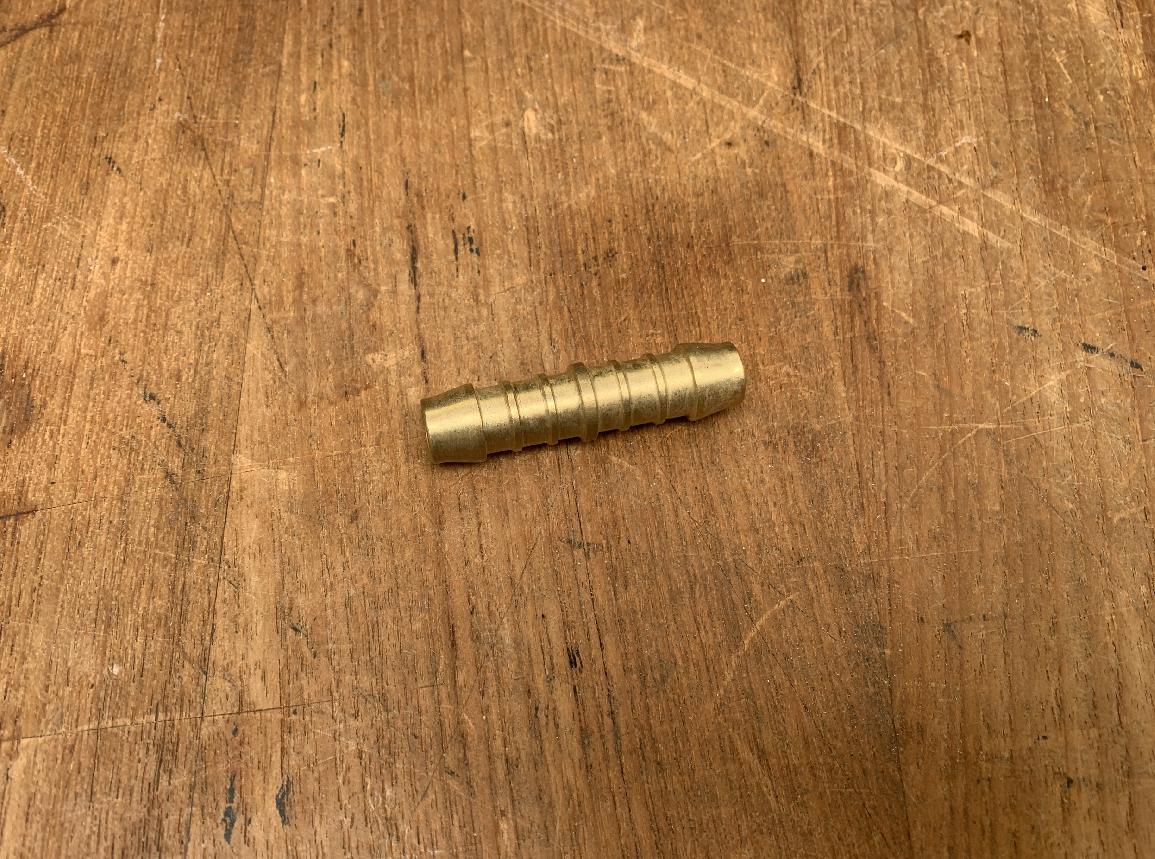

Grove 3046709 - CONNECTING PIECE FOR HOSE

Search for Crane Part number

(click on image to open PDF document)

Figures in which the part appears:

Also known as:
3046709, 03046709, 003046709

Parts for Grove GMK 5130-2, Figure 3093868-ETL:
Part Number 3046709: CONNECTING PIECE FOR HOSE

Pos nr	Part number	Description	Weight in kg
1	3093869	COOLING UNIT.
2	3041458	FLUID RESERVOIR	6.700
3	3325101	CHARGE AIR HOSE	0.32
5	3093870	SHAPED HOSE	0.51
6	3093871	SHAPEDHOSE	0.396
7	3046039	WATER HOSE	0.36
8	3093872	CONNECTION TUBE
9	2316876	HOSE (METER WARE)	0.4
10	1207752	HOSE 12 X 3,5 (METERWARE)	0.16
11	3046706	SHAPED HOSE	0.1
12	0437181	HEXAGON SCREW M10X20	0.022
13	1368030	WASHER M10	0.005
14	0437643	HEXAGON NUT M10	0.010
15	1925395	HOSE CLAMP	0.04
16	1925396	HOSE CLAMP	0.04
17	1925394	HOSE CLAMP	0.028
18	2217171	HOSE CLAMP	0.026
19	2318223	HOSE CLAMP	0.26
20	3011785	MOUNTING PIECE
22	1686701	WASHER M8	0.005
23	3046709	CONNECTING PIECE FOR HOSE	0.016
24	1207350	HOSE 10 X 3,5 (PER METER)	0.067
25	3063555	WASHER
26	0554859	MEGI-BUFFER	0.12
27	3046743	MEGI-BUFFER	0.07
28	2311893	WASHER
29	0437642	HEXAGON NUT M8	0.003
31	3093873	HOLDING
32	3093874	HOLDING
33	3093875	HOLDING
34	0027079	HEXAGON SCREW M8	0.014
35	3099572	STOP POINT
36	3099565	CONNECTING PARTS, HEATING
