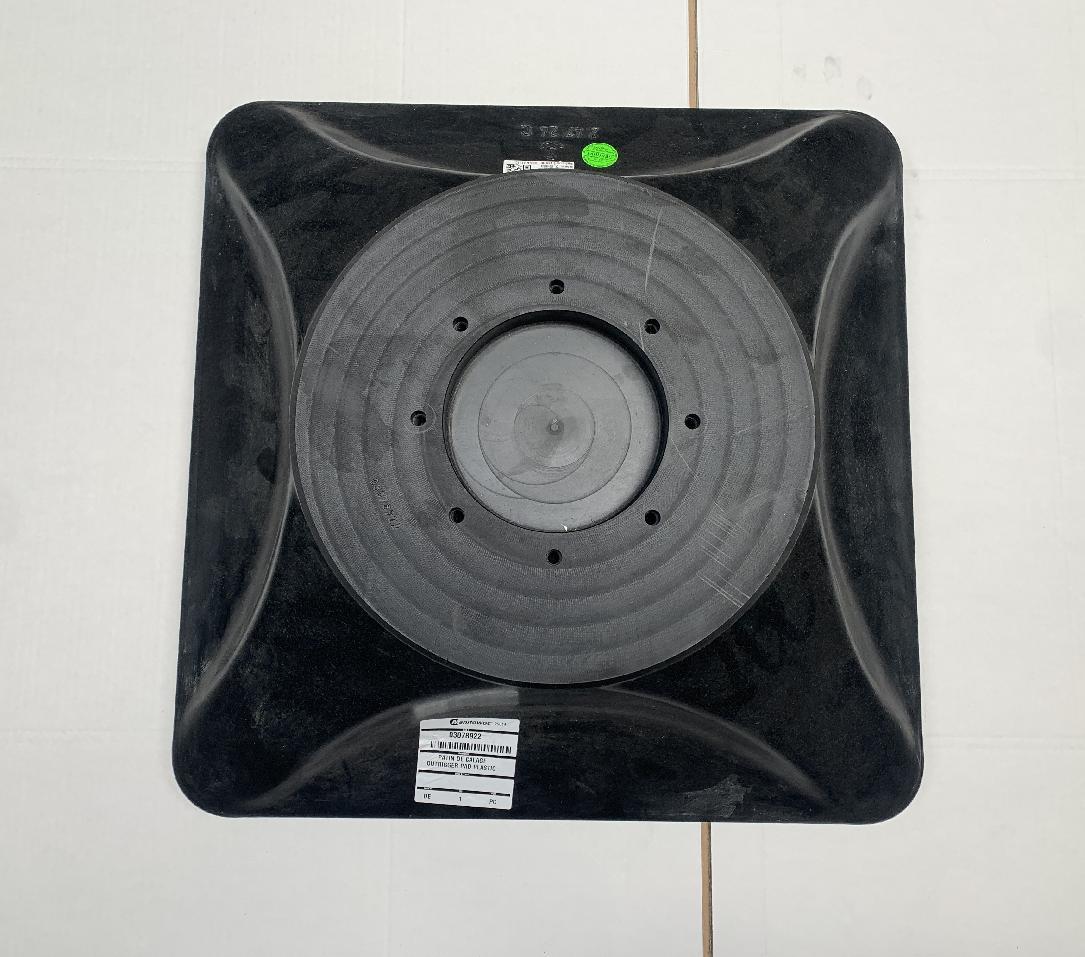

Grove 3078020 - OUTRIGGER PAD (PLASTIC)

Search for Crane Part number

(click on image to open PDF document)

Figures in which the part appears:

Also known as:
3078020, 03078020, 003078020

Parts for Grove GMK 5095, Figure 3145363-ETL:
Part Number 3078020: OUTRIGGER PAD (PLASTIC)

Pos nr	Part number	Description	Weight in kg
1	3145364	OUTRIGGER BEAM 1, REAR
2	3145365	OUTRIGGER BEAM 2, REAR
3	3057439	LOCKING PIN	0.705
4	0103221	HEXAGON SCREW	0.133
6	3053379	GUIDE PIN	0.08
7	1373852	HEXAGON NUT	0.300
8	1207489	HEXAGON SCREW
9	3057436	LOCKING PIN	0.725
10	0437745	HEXAGON NUT	0.015
11	3323587	HEXAGON BOLT	0.58
12	0437750	HEXAGON NUT	0.17
13	3133354	ROLLER
21	0435860	HEXAGON BOLT
22	0437746	HEXAGON NUT	0.034
23	0103148	HEXAGON BOLT
25	0553039	RIW-LOCKING CAP	0.32
27	1376255	GUIDE PIN	0.12
28	2250017	THREADED PIN	0.11
29	0437647	HEXAGON NUT
30	2250018	WASHER	0.04
32	3057381	OUTRIGGER PAD HOLDER	3.59
33	3057382	OUTRIGGER PAD HOLDER	3.62
100	3078020	OUTRIGGER PAD (PLASTIC)	36
100	3078021	OUTRIGGER PAD (STEEL)	9.98
100	3155765	VARIANTS OUTRIGGER PADS
100.01.01	3011731	OUTRIGGER PAD	35.2
100.01.02	3078019	OUTRIGGER PAD RETAINER	5.7
100.01.03	3057383	BEARING	8.730
100.01.05	0437546	SPRING WASHER	0.005
100.01.06	0437644	HEXAGON NUT	0.084
100.01.08	3078025	LOCKING PIN	0.92
100.02.01	3055693	OUTRIGGER PAD	53.21
100.02.03	3055697	BEARING	11.57
