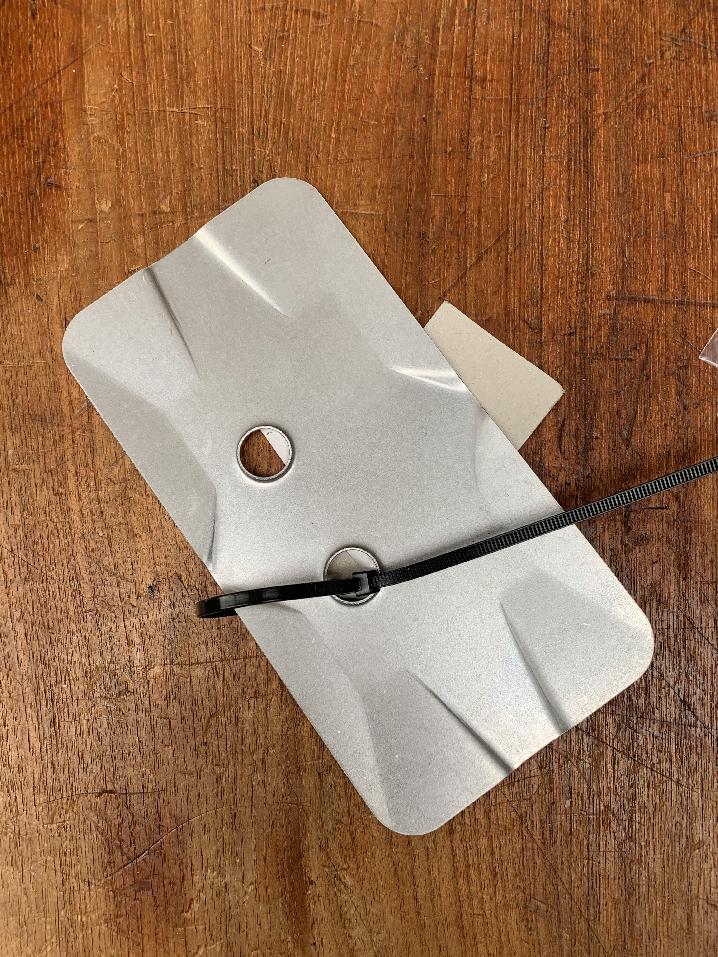

Grove 3041445 - SHROUD

Search for Crane Part number

(click on image to open PDF document)

Figures in which the part appears:

Also known as:
3041445, 03041445, 003041445

Parts for Grove GMK 5095, Figure 3126198-ETL:
Part Number 3041445: SHROUD

Pos nr	Part number	Description	Weight in kg
1	3153480	DIESEL ENGINE
2	3150965	ACCESSORIES	155
2	3150964	AUTOMATIC GEAR
2	3114506	GEAR BOX (0240-16 EPS III SA)
3	3010565	LINER	3.4
4	3010566	LINER	3.4
7	3315099	HEXAGON SOCKET HEAD CAP SCREW
8	2255162	SPRING WASHER FOR SCREWED CONNETIONS
9	3041131	HEXAGON SCREW
10	3317155	CLAMP WASHER	0.03
11	0106067	HEXAGON SOCKET HEAD CAP SCREW
12	1207283	HEXAGON SCREW
13	0118983	HEXAGON SCREW	0.096
14	0434709	HEXAGON NUT	0.03
15	2256338	FILLER PLUG	0.03
16	2256339	OIL FILLING PIPE
18	0437742	HEXAGON NUT M6	0.005
19	3011833	SHAPED HOSE	0.73
20	1925394	HOSE CLAMP	0.028
21	1925395	HOSE CLAMP	0.04
22	3046204	PIPE CLAMP
23	1925033	WASHER 6	0.005
24	3317252	MOTOR BEARING	4.39
25	3041445	SHROUD	0.17
26	3317253	MOTOR BEARING	3.45
29	0438925	HEXAGON SCREW	0.07
