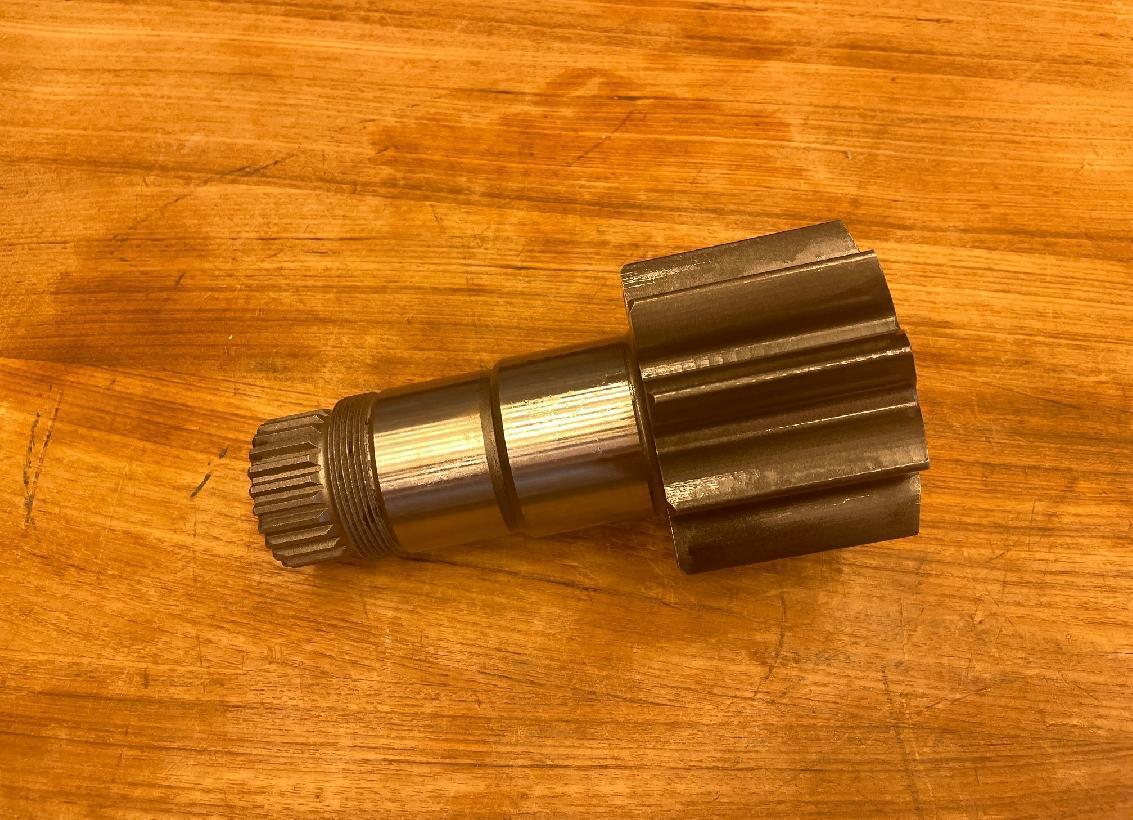

Grove 3042920 - PINION SHAFT

Search for Crane Part number

(click on image to open PDF document)

Figures in which the part appears:

Also known as:
3042920, 03042920, 003042920

Parts for Grove GMK 3055, Figure 3319062-ETL:
Part Number 3042920: PINION SHAFT

Pos nr	Part number	Description	Weight in kg
1	3319778	SUN WHEEL	0.001
2	2315811	PLANET WHEEL (ONLY COMPLETE AVAILABLE)
3	2315812	RING GEAR
4	3134898	PIN CARRIER
5	3319779	ADAPTER	3
6	2315815	SUN WHEEL	0.440
7	2315816	PLANET WHEEL (ONLY COMPLETE AVAILABLE)	0.01
8	3042918	RING GEAR	10.700
9	3134799	PLANETARY CAGE	14.038
10	2315819	PIN	0.146
11	3042920	PINION SHAFT	6.5
12	2315821	SPACER RING	0.094
13	3042921	BEARING BUSH	0.001
14	2315823	SCREW CONNECTION	0.13
15	1686242	HEXAGON SOCKET HEAD CAP SCREW	0.024
16	2315065	ROTARY SHAFT SEAL	0.102
17	2315069	GROOVED BALL-BEARING	0.03
18	2315070	GROOVED BALL BEARING	0.03
19	2315071	PLANET WHEEL BEARING, ONLY COMPLETE AVAILABLE	0.06
21	0028210	CIRCLIP
22	0436695	SCREW PLUG	0.015
23	2316383	SCREW PLUG	0.005
24	0117132	SEALING RING	0.003
25	1368741	SEALING RING	0.001
26	3042922	HOLLOW SCREW	0.03
27	1679004	ROTARY SHAFT SEAL	0.028
28	2315072	GROOVED BALL-BEARING	0.05
29	2315073	PLANET WHEEL BEARING, ONLY COMPLETE AVAILABLE	0.001
30	2312186	O-RING, 150 X 3	0.16
31	3042923	SHAFT NUT	0.3
32	1146955	HEXAGON SOCKET HEAD CAP SCREW	0.100
33	2315074	NILOS RING	0.12
34	2315078	TAPERED ROLLER BEARING	0.931
35	2315079	TAPERED ROLLER BEARING	0.856
36	2312187	VENTILATION FILTER	0.2
37	1929853	OIL INSPECTION GLASS	0.16
38	0105293	CIRCLIP
40	3134800	PIN
