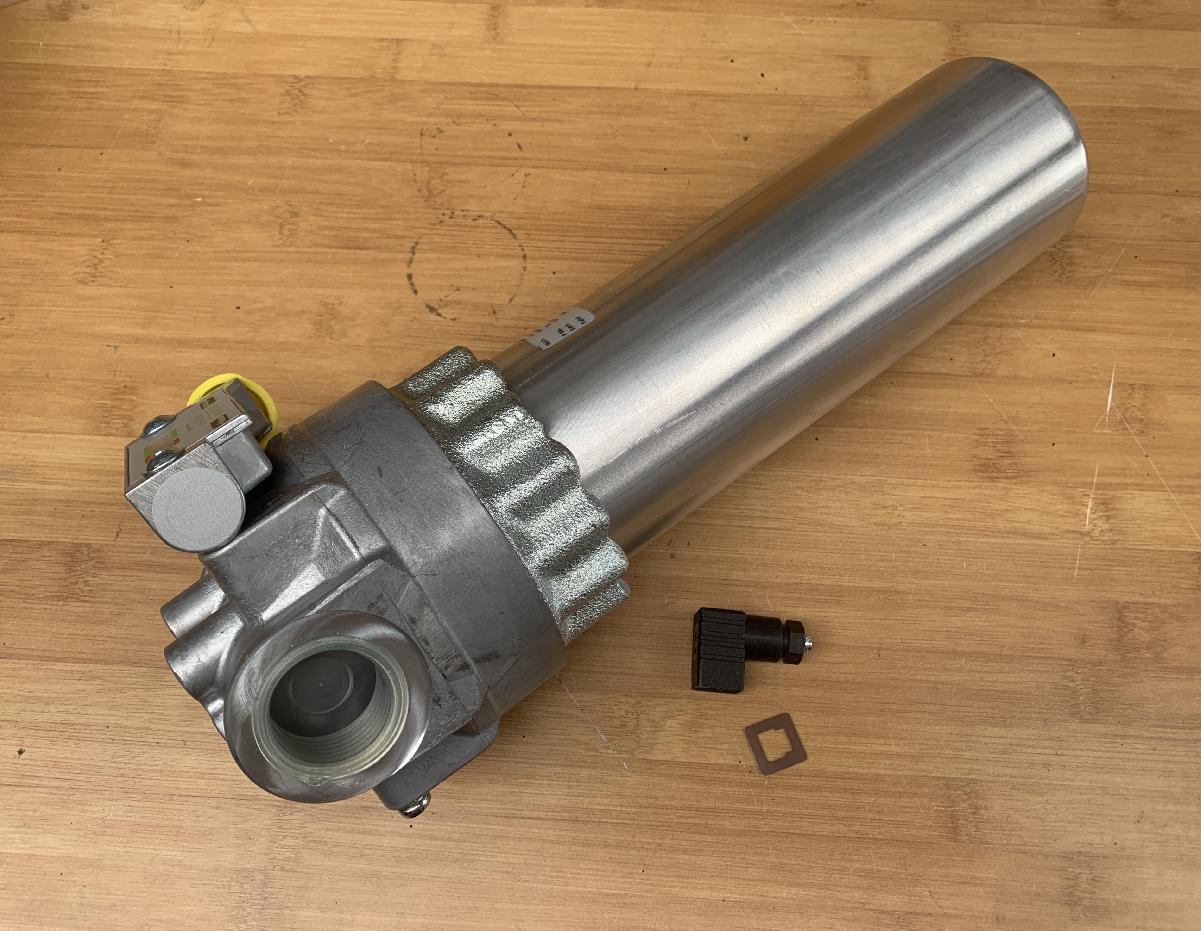

Grove 3317109 - FILTER

Search for Crane Part number

(click on image to open PDF document)

Figures in which the part appears:

Also known as:
3317109, 03317109, 003317109

Parts for Grove GMK 6400, Figure 3191727-ETL:
Part Number 3317109: FILTER

Pos nr	Part number	Description	Weight in kg
2	3317109	FILTER	1.470
3	3317156	PRESSURE LIMITING VALVE	2.62
4	3320519	VALVE BLOCK	2.59
5	1922561	STRAIGHT PIPE UNION	0.140
7	0437181	HEXAGON SCREW M10X20	0.022
8	0118823	HEXAGON SCREW	0.01
9	0207734	L-CONNECTION NOZZLE	0.13
15	1921882	MALE SCREW CONNECTION	0.097
16	1575172	SCREW-IN FITTING	0.03
17	1147651	SCREW-IN FITTING	0.042
18	1680394	SCREW PLUG	0.200
22	1922603	MALE SCREW CONNECTION	0.160
26	1921892	RETAINER	1.225
27	1146262	SCREW-IN FITTING	0.164
30	1686709	SCREW-IN FITTING	0.035
31	1203727	CONE-REDUCTION CONNECTION	0.160
32	1368030	WASHER M10	0.005
33	0207735	L-CONNECTION NOZZLE	0.100
35	0207736	NOZZLE	0.430
36	0207733	W-CONNECTION NOZZLE	0.350
37	1374759	PIPE UNION
38	0208013	L-CONNECTION NOZZLE	0.094
