Parts for Grove GMK 5180, Figure 2214660-ETL:

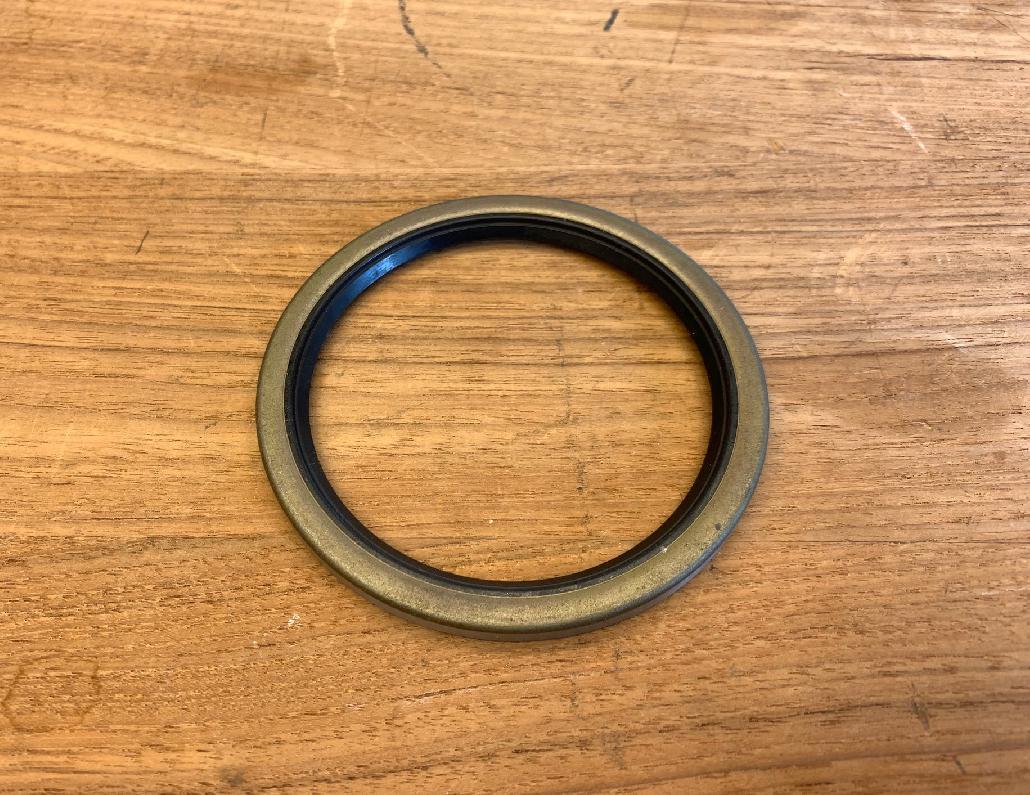

Part Number 3042135: SEALING RING
Pos nr Part number Description Weight in kg
2 3042123 PLAN ETARY GEAR CASING
4 3042124 SHAFT SEAL 0.06
5 3042125 ROTARY SHAFT SEAL 0.28
11 1684138 CIRCLIP 0.018
12 2309054 O-RING, 120 X 3 0.005
13 1925740 GEAR WHEEL 4.98
15 2309025 AXLE CASING
16 1925785 SCREW PLUG 0.08
17 0117151 SEALING RING 0.005
18 1371216 SCREW PLUG 0.23
19 1371208 SEALING RING 0.005
20 0117131 SEALING RING 0.005
21 1925788 AIR BLEEDER 0.05
23 2309022 COVER 10.26
24 0437306 HEXAGON SOCKET HEAD CAP SCREW 0.02
25 1069223 O-RING 0.1
26 2309020 FLANGE
27 1685245 HEXAGON SCREW
35 1925349 TAPERED ROLLER BEARING 1.37
42 2309032 SLIDING SLEEVE 0.62
43 2309033 SHIFT FORK
44 2309034 PISTON 0.13
45 2309035 BACK-UP WASHER 0.010
46 2212311 O-RING, 32 X 5 0.005
47 2309037 THREADED BUSH 0.090
48 1925786 PRESSURE SPRING 0.03
49 2309038 O-RING, 50 X 3 0.005
50 2309039 CYLINDER 0.26
51 3042128 PRESSURE SWITCH 0.300
51 3042138 PRESSURE SWITCH
52 0117137 SEALING RING 0.005
54 0433890 TAPERED ROLLER BEARING 3.020
55 1925790 BACK-UP WASHER 0.17
56 0434651 TAPERED ROLLER BEARING 2
57 1925748 SPACER RING
58 1684119 DRIVE-IN NUT 0.420
61 2257786 HEXAGON SCREW 0.08
62 2309049 SHAFT 5.72
63 2309050 SHAFT 5.72
64 0434575 GROOVED BALL BEARING 1.085
65 2252487 BACK-UP WASHER 0.06
66 1207981 CIRCLIP
67 2309048 ROTARY SHAFT SEAL 0.055
70 2309043 PRESSURE SPRING 0.03
71 2309047 CIRCLIP
73 2309051 RING
76 2257878 SEALING RING 0.001
77 2309045 SHIM RING 0.001
78 2309044 BUSH
79 2309046 ROD 1.100
82 2309023 O-RING, 108 X 3 0.005
83 0028503 CIRCLIP 0.095
85 3042130 TRANSFER DRIVE SHAFT 14.9
87 1684580 GROOVED BALL BEARING 0.780
88 2309021 O-RING, 265 X 4 0.025
89 2309036 ROD 0.29
90 1925719 COVER
92 1925758 ADJUSTING RING 0.620
95 1684139 BACK-UP WASHER
97 0028504 CIRCLIP
98 0434649 TAPERED ROLLER BEARING 1.31
102 3042135 SEALING RING 0.001
117 3316215 SPECIAL LUBRIGATION GREASE 1.14
