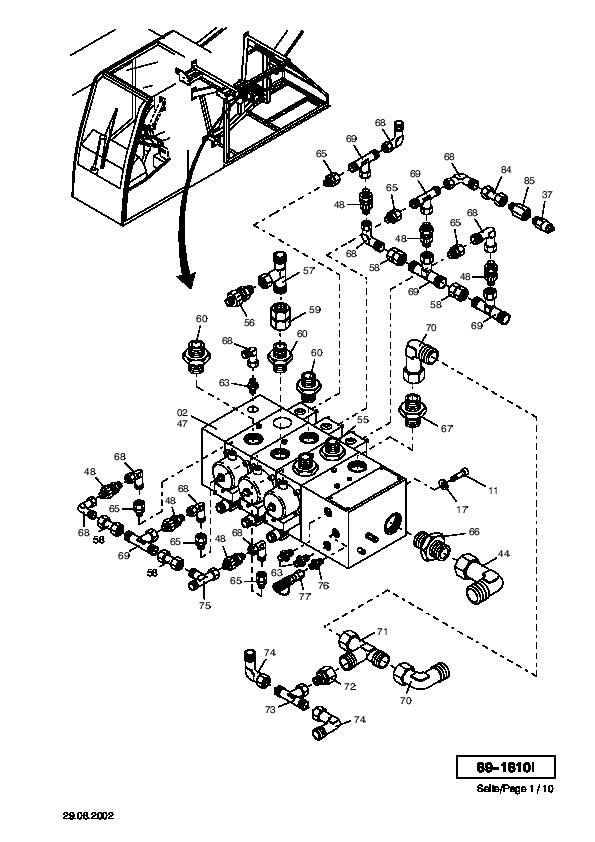

Parts for Demag CC 2800, Figure 89-1810I:
Part Number 34050699: DISC
Pos nr Part number Description Weight in kg
2 00029412 CONTROL BLOCK
4 63534540 REMOTE CONTROL PLATE AT 49962312
5 63498340 ACCUMULATOR
11 51068698 CYLINDER BOLT
13 50978898 SCREW
14 51008098 CYLINDER BOLT
15 50987098 NUT ED 51116298
16 50986998 NUT
17 51031498 WASHER
18 51002898 DISC / PANE
19 34050699 DISC
20 00029512 CONTROL BLOCK
22 51109198 SCREW
37 00115512 SWITCH
38 55198540 TEST SOCKET
42 60491040 NON-RETURN VALVE
44 55144540 SOCKET
47 67016840 DECALS "CONTROL BLOCKS"
48 63469740 NON-RETURN VALVE
50 00025612 VALVE
55 00053512 SOCKET
56 00053412 NON-RETURN VALVE
57 63449740 HYDRAULIC FITTING
58 63538740 SOCKET
59 63555540 SOCKET
60 57641040 SOCKET
61 00086212 SOCKET
63 55134940 SOCKET
64 55145240 SOCKET NF 37031499
65 55146140 SOCKET
66 55145340 SOCKET
67 55153040 SOCKET
68 55144440 SOCKET
69 55145540 SOCKET
70 57640140 SOCKET
71 55145040 SOCKET
72 55145740 SOCKET
73 57630140 SOCKET
74 55148040 SOCKET
75 55144740 SOCKET
76 55128040 SOCKET
77 57629440 FITTING
78 50946198 SOCKET 0.22
79 55145640 SOCKET
80 55130640 SOCKET 0.1
81 55144940 SOCKET 0.92
82 55145440 SOCKET
83 55130140 SOCKET 0.13
84 54398640 PIPE
85 55163340 ADAPTER
101 30067012 PIPE, ASSY. ø 20 MM
102 30067112 PIPE, ASSY. E 20 MM
103 30067212 PIPE, ASSY. ø 25 MM
104 30067312 PIPE, ASSY. O 25 MM
105 30067412 PIPE, ASSY. O 25 MM
106 30067512 PIPE, ASSY. ø 22 MM
112 51308198 SCREW
113 51010998 NUT
114 51031798 DISC 0.1
116 66815840 ASSEMBLY RAIL
117 50979398 SCREW
120 65521940 PAIR OF HALF CLAMPS, ø 25MM
121 00001812 PAIR OF HALF CLAMPS, E 20MRN
122 00001912 PAIR OF HALF CLAMPS, ø 22MRN
123 50403098 NUT 0.01
125 50983398 BOLT
128 51049498 WASHER
130 50982998 SCREW
131 51185698 COVER PLATE
149 55152840 SOCKET EF00003012
191 32320040 TROTTIE CHECK VALVE
192 60496440 SOCKET
195 61556440 DECAL
196 67122340 HOSE, ASSY.
201 30067712 HOSE ASSY.
202 59253540 HOSE
203 61441340 HOSE ASSY.
204 66812740 HOSE ASSY.
205 66817140 HOSE ASSY.
206 66818740 HOSE ASSY.
207 61548640 HOSE ASSY.
209 59253640 HOSE ASSY.
210 30068712 HOSE ASSY.
211 66823340 HOSE ASSY.
214 30067812 HOSE ASSY.
215 30067912 HOSE ASSY.
216 61268440 HOSE ASSY.
219 30067612 HOSE ASSY.
220 30068012 HOSE ASSY.
221 30069712 HOSE ASSY.
224 61548740 HOSE ASSY.
225 66814140 HOSE ASSY.
226 66812340 HOSE ASSY.
229 66812240 HOSE ASSY.
230 66812140 HOSE ASSY.
231 66811440 HOSE ASSY.
234 66812640 HOSE ASSY.
235 66812440 HOSE ASSY.
238 30068112 HOSE ASSY.
261 67021040 HOSE ASSY.
