Search for Crane Part number

(click on image to open PDF document)

Figures in which the part appears:
4324949-ETL (Grove GMK 3060-2 )
4248649-ETL (Grove GMK 3060-2 )
4237419-ETL (Grove GMK 3060-2 )

Also known as:
3315265, 03315265, 003315265
Parts for Grove GMK 4090-1, Figure 4324949-ETL:

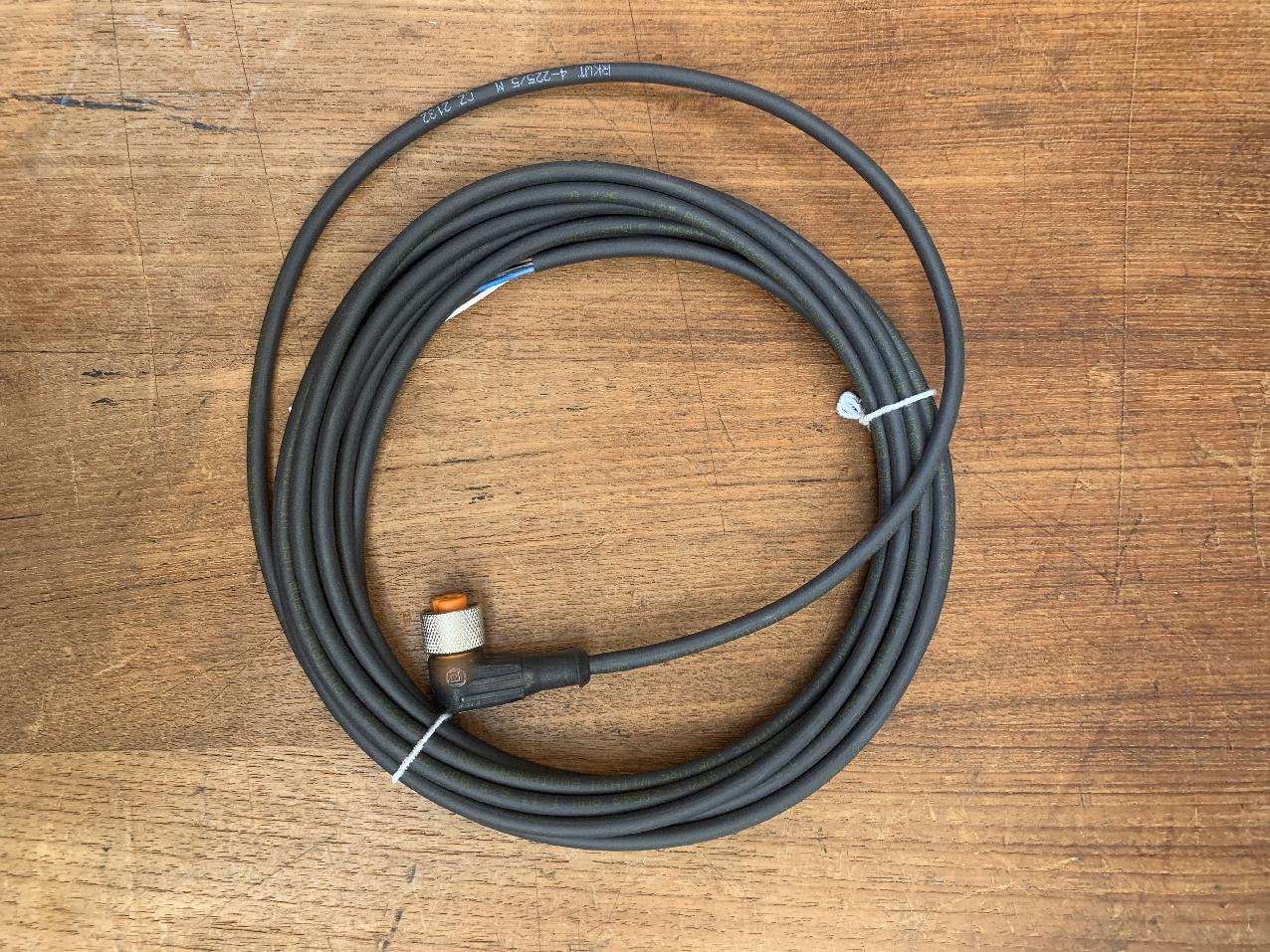

Part Number 3315265: CABLE-PLUG BOX
Pos nr Part number Description Weight in kg
1 2214703 CABLE (PER METER) 0.01
2 2214704 CABLE (PER METER) 1
3 1370445 CABLE (PER METER) 0.009
4 2318261 CABLE FLRY-B 0,5 BN (PER METER) 0.085
5 1370458 CABLE (PER METER) 0.060
6 2315700 CABLE 0.020
7 3317915 BLIND PLUG 0.005
8 3317922 PIN HOUSING 0.005
9 3041854 SOCKET HOUSING 0.006
10 3317912 SOCKET CONTACT 0.005
11 3317913 SEAL 0.005
12 3329020 RUBBER CAP 0.001
13 3041720 TIMER HOUSING 0.04
14 3041215 JUNIOR POWER TIMER CONTACT 0.004
15 3041216 SINGLE-LINE SEAL 0.01
16 3142177 JUNIOR POWER TIMER HOUSING 0.04
17 4159615 JUNIOR POWER TIMER HOUSING 0.045
18 3142252 CONTACT
19 3142173 CONTACT 0.010
20 3041339 SINGLE-LINE SEAL
21 3325811 PROTECTIVE COVER 0.100
22 2224594 ANGULAR PLUG
23 2212600 BAR|1/4 X 1 1/2 X 10 PC 0.454
25 1370370 PLUG BOX-BODY
26 3041656 SOCKET CONTACT 0.001
27 3041655 PIN CONTACT 0.001
28 0558776 SHRINK HOSE (PER METER) 0.295
30 3046040 SOCKET HOUSING 0.005
31 3317931 PLUG ADAPTER 0.005
32 3317995 REDUCER 0.002
34 3320722 SOCKET HOUSING 0.015
35 3320720 SOCKET CONTACT 0.14
36 3320721 SINGLE-LINE SEAL 0.005
37 3041338 BLIND PLUG 0.003
38 3323676 CAP 0.006
39 3317924 PIN HOUSING 0.01
40 3317920 PIN 0.005
41 3317934 PLUG ADAPTER 0.004
42 3317917 SOCKET HOUSING 0.005
47 3317916 SOCKET HOUSING
48 3317926 CORRUGATED HOSE (PER METER)
49 3317927 CORRUGATED HOSE (PER METER)
50 3317928 CORRUGATED HOSE (PER METER)
51 3317929 CORRUGATED HOSE (PER METER) 0.001
52 3320685 CORRUGATED TUBE 0.040
53 3317930 CORRUGATED TUBE 1.204
54 3317996 CORRUGATED TUBE
56 3325520 T-CONNECTION
57 3317942 T-CONNECTION 0.015
58 3317941 T-CONNECTION
59 3317994 T-CONNECTION 0.010
60 3041856 SOCKET CONTACT 0.005
61 3322199 Y-DISTRIBUTOR
62 3317943 Y-DISTRIBUTOR
63 3041855 SINGLE-LINE SEAL (YELLOW) 0.005
66 3320726 REDUCER 0.005
67 3323500 REDUCER
68 2314534 SHRINK HOSE 0.001
69 3317069 SHRINK HOSE (PER METER) 0.090
70 3317919 PIN HOUSING 0.005
71 3325763 RUBBER CAP 0.005
73 3317933 PLUG ADAPTER 0.004
74 2318067 RESISTOR 0.005
75 3321643 SHRINK HOSE 0.07
76 3328033 FUSION TAPE 0.
79 3320686 T-CONNECTION
80 3325299 CABLE-PLUG BOX 0.440
81 3329822 ROUND CONNECTOR
83 3317966 REDUCER
84 3317944 REDUCER
85 3325977 TWISTED SHEATHED CAN BUS CABLE 1.558
86 2312363 MULTICORE CABLE END 0.010
87 3315265 CABLE-PLUG BOX 0.280
88 3327436 PROTECTION CAP
89 3325424 SHRINK HOSE 0.015
90 3319396 SHRINK HOSE (PER METER)
91 0554246 CABLE CLIP 0.002
92 4159131 HOOD 6B
93 3329807 PIN INSERT
94 3320713 CONTACT
95 3320714 CONTACT 0.01
96 3320715 CONTACT
97 3327548 CORRUGATED HOSE (PER METER)
98 3311624 REDUCTION 0.001
99 4160342 SCREWED GLAND
100 4162226 PLUG HOUSING
101 4162227 PLUG CAP
102 3317964 REDUCTION
103 4159560 REDUCER
104 4166033 CRIMP-TYPE CABLE SOCKET
* Selected parts are automatically added to your RFQ list *
3315265 Grove GMK 3060 CABLE-PLUG BOX
