Search for Crane Part number

(click on image to open PDF document)

Figures in which the part appears:
2307129-ETL (Grove GMK 3050 COMPRESSED-AIR SYSTEM)

Also known as:
0117147, 117147, 00117147, 000117147
Parts for Grove GMK 4090-1, Figure 2307129-ETL:
Part Number 0117147: SEALING RING
Pos nr Part number Description Weight in kg
1 0437136 TUBE 12X1,5 (PER METER) 2
1 0437137 PIPE 18X2 (PER METER) 0.100
1 0437135 PIPE 0.03
1 2307131 PIPE HARNESS FOR COMPRESSED AIR, CHASSIS
2 2307133 VALVE BLOCK
3 2303807 VALVE SUPPORT 1
4 2303809 VALVE SUPPORT 2
5 2303811 VALVE SUPPORT 3
6 2303813 BRAKE CYLINDER
7 2219686 HOSE 0.43
7 2219086 HOSE
8 2219685 HOSE 0.52
9 2217980 MOUNTING PIECE
10 1571494 SPACER PLATE 0.017
11 1571750 SUPPORT RAIL NUT 0.030
12 1147651 SCREW-IN FITTING 0.042
13 1576155 SCREW-IN FITTING 0.02
14 1575172 SCREW-IN FITTING 0.03
15 0554601 MALE SCREW COUPLING
16 0551350 MALE STUD COUPLING
17 1147726 CONNECTING NOZZLE 0.03
17 1147728 NOZZLE
18 0208008 W-CONNECTION NOZZLE 0.082
19 1147771 W-CONNECTION NOZZLE 0.065
20 0208007 W-CONNECTION NOZZLE 0.17
21 0208013 L-CONNECTION NOZZLE 0.094
22 1147763 L-CONNECTION NOZZLE 0.05
23 0204573 ANGULAR CONNECTOR 0.01
24 0435646 COUPLING NUT 0.02
24 0435648 COUPLING NUT 0.06
25 0431448 COUPLING NUT 0.15
26 0437819 COUPLING NUT 0.010
27 0436472 CUTTING RING 2.072
28 0436471 CUTTING RING 0.015
29 0117129 SEALING RING 0.17
30 0551444 SLEEVE 0.004
31 0551442 SLEEVE 0.005
32 0551443 SLEEVE 0.004
33 0437185 HEXAGON SCREW 0.033
34 0437285 HEXAGON SOCKET HEAD CAP SCREW 0.005
35 0437284 HEXAGON SOCKET HEAD CAP SCREW M6X16 0.006
36 0553175 RUBBER STRIP 0.11
37 0437545 SPRING WASHER 0.005
38 0437717 SPRING WASHER 0.001
41 2303834 VALVE SUPPORT 4
42 1684621 AIR DRYER 4.400
43 1927170 SILENCER 0.06
045. 0439294 HEXAGON SCREW M12X1,5X25
46 1684756 TYRE INFLATOR VALVE 0.36
47 2211563 VALVE 0.415
48 1377531 MAGNET 0.41
50 1678235 AIR BLEED CAP 0.005
51 2309579 COMPRESSED-AIR RESERVOIR 19
52 1678260 STRAP 5.800
53 1570750 DRAIN VALVE 0.200
54 0117142 SEALING RING 0.005
55 0552185 FLEXIBLE EDGE PROTECTION (PER METER) 0.14
56 0551717 OVERFLOW VALVE 0.46
57 2312663 MOUNTING PIECE
58 2314197 STEEL PIPE
59 2314198 STEEL PIPE
60 2314199 STEEL PIPE
61 1203973 HOSE
62 1202061 PRESSURE TEST CONNECTION 0.07
63 1068363 CLAMP
64 1574892 CLAMP
65 0027079 HEXAGON SCREW M8 0.014
67 1147896 HEXAGON SOCKET HEAD CAP SCREW 0.01
68 0437642 HEXAGON NUT M8 0.003
69 1923997 HEXAGON NUT M5 0.1
70 0436163 SPRING WASHER 0.005
71 0437543 SPRING WASHER 0.001
72 1146676 *SPRING WASHER 0.005
73 2257201 MOUNTING RAIL NUT
74 0550148 LOCKING CONE 0.05
75 1065361 SCREW PLUG 0.05
76 0117131 RING SEALING 0.001
77 1571495 SPACER PLATE
78 1066711 SWIVELLING SCREW COUPLING
79 1573118 MALE SCREW COUPLING 0.15
80 0117147 SEALING RING 0.005
81 1068573 SCREW-IN FITTING 0.14
82 1147673 SCREW-IN FITTING 0.080
83 1922599 MALE SCREW CONNECTION 0.07
84 1576159 SCREW-IN FITTING
85 0430447 CONNECTING NOZZLE 0.015
86 1147683 CONNECTING NOZZLE
87 1575140 W-CONNECTION NOZZLE 0.04
88 0436439 L-CONNECTION NOZZLE 0.230
89 0208011 T-CONNECTING NOZZLE 0.09
90 1147752 T-CONNECTING NOZZLE 0.05
91 0204571 ANGULAR CONNECTOR
92 2212078 STRAIGHT REDUCING SCREW
93 1575299 CONE-REDUCTION CONNECTION 0.03
95 0436470 CUTTING RING 0.005
96 0439176 CUTTING RING 0.003
97 0117511 CUTTING RING 0.005
98 0204802 CUTTING RING 0.001
99 1066200 SLEEVE 0.015
101 0438479 TUBE 6X1 (PER METER) 0.016
* Selected parts are automatically added to your RFQ list *

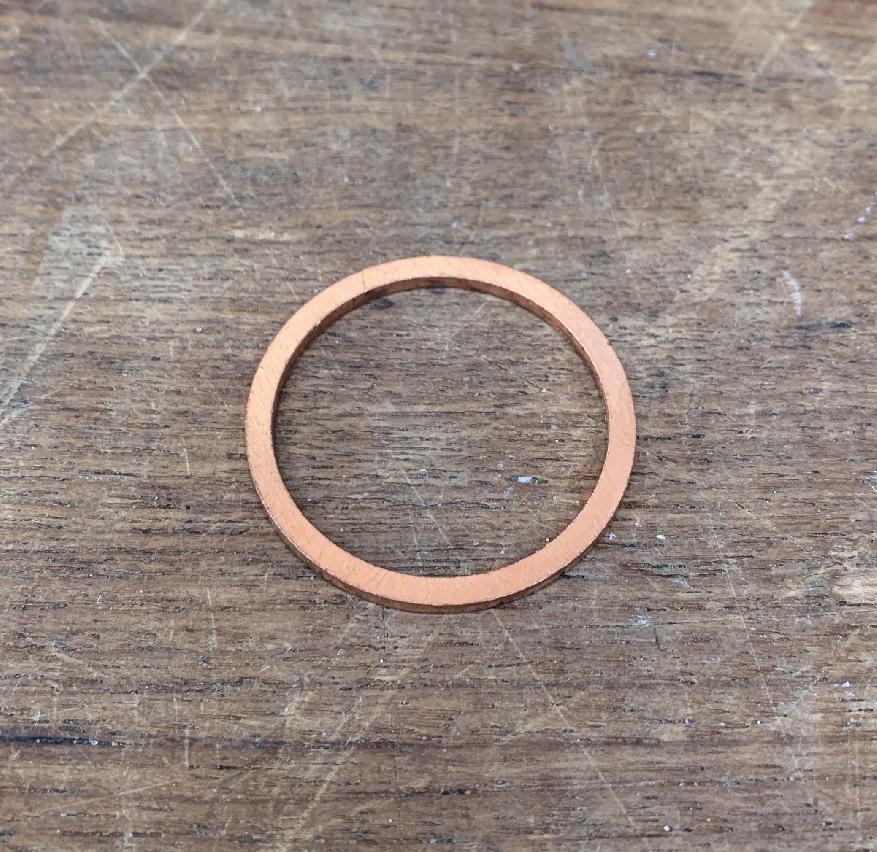

0117147 Krupp 70 GMT SEALING RING
